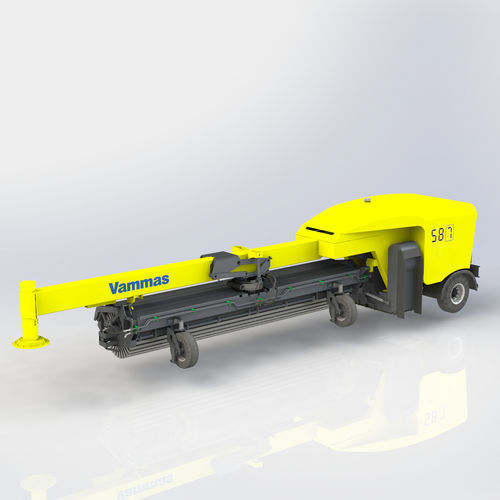

Airport runway snow plow SB series

with brush

Total length from fifth wheel - 10.93 m - 11.95 m - 13.10 m - 11.65 m - 12.85 m Total width in transport position - 2.55 m - 2.55 m - 2.55 m - 2.6 m - 2.6 m Height - 2.62 m - 3.30 m - 3.30 m - 3.15 m - 3.15 m Weight - 10 t - 16,6 t - 17,5 t - 15.4 t - 16.5 t Turning radius: - depends on the truck - 10.3 m - 11.2 m - 10.1 m - 11.0 m Broom core lenght - 4.2 m - 5.65 m - 6.72 m - 5.65 m - 6.72 m Broom working width (35°) - 3.44 m - 4.6 m - 5.5 m - 4.6 m - 5.5 m Broom maximum diameter - 960 mm - 1200 mm - 1200 mm - 1200 mm - 1200 mm Swing angle left and right - 35° - up to 40° - up to 40° - up to 40° - up to 40° Caster wheels, automatic adjustment optional - 2 pairs - 2 pairs - 2 pairs - 2 pairs - 2 pairs Air flow - 8.5 cu m/s - 11.5 cu m/s - 11.5 cu m/s - 11.5 cu m/s - 11.5 cu m/s Air speed at nozzle - 400 km/h - 500 km/h - 500 km/h - 500 km/h - 500 km/h Recommended max. working speed - 40 – 60 km/h - 40 – 60 km/h - 40 – 60 km/h - 40 – 60 km/h - 40 – 60 km/h Aggregate engine – EU Stage V - EU Stage V 285kW - EU Stage V 285kW - 345kw - EU Stage V 285kW - 345kw - EU Stage V 285kW - 345kw - EU Stage V 285kW - 345kw Voltage - 24 V - 24 V - 24 V - 24 V - 24 V
