Bag tag printer MAP

ticketdatafor airport

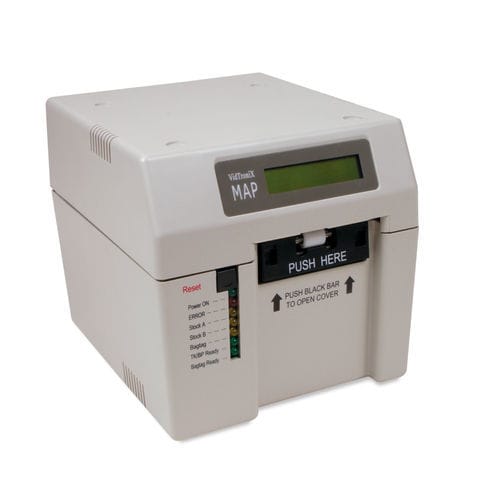

The VidTroniX MAP is a three path travel document printer that prints on two boarding pass stocks and one baggage tag stock in succession using a single printhead. Given the small size of the MAP printer and its ability to print on three separate stocks it is able to take up much less space than the three printers it essentially replaces. There are separate interface connections for the boarding pass and baggage tags allowing for dual host configurations. Each printer is individually tested using the customer's stock and data message to ensure that the printers will operate properly upon receipt, which prevents needless troubleshooting and adjustments. DIMENSIONS (HxWxL) 173 x 177 x 211 mm | 6.8 x 7.0 x 8.3" WEIGHT <4.6KG (10LBS) PRINT TECHNOLOGY Direct thermal PRINT SPEED Up to 6 inches per second Up to 30 coupons per minute PRINT RESOLUTION 203 dpi or 300 dpi PRINT HEAD REPLACEMENT 1/2 Minute - no tools required PAPER HANDLING Near straight paper 3 Paper feed paths selectable Path 1 and 2 are both ATB Path 3 is Bag Tag PAPER WIDTH 2.125" (bag tag) 3.250" (ticket and boarding pass) PAPER SERERATION Motor operated burster, a must if using RFiD bagtag stock ELECTRONICS Microprocessor controlled Power backed RAM Standard flash ROM Optional flash ROM 2MB SYSTEM INTERFACE ATB Host – RS232C to 38,400 baud Bag Tag Host – RS232C to 38,400 baud RJ45 Connectors Optional USB Interface available Optional LAN interface available DISPLAY LCD 2 rows with 16 characters With backlight OPERATOR CONTROLS Operator switch LED – Power, LED – Error, LED – Stock out bin 1 LED – Stock out bin 2, LED – Stock out bin 3, LED – Ready 1, ATB, LED – Ready 2, BagTag POWER SUPPLY
