Product overview

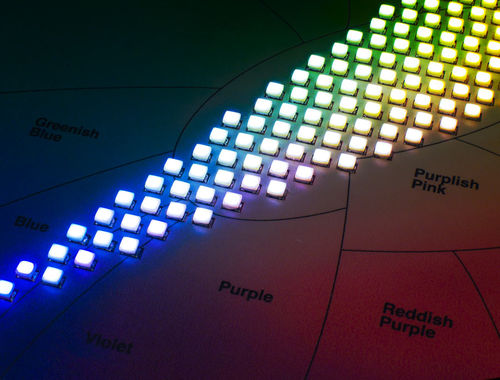

A phosphor-converted SMT LED in which the phosphor is impregnated into a silicone boot placed over a blue LED. Designed for precise color tuning and stable brightness in aerospace backlighting and indicator applications.

Applications

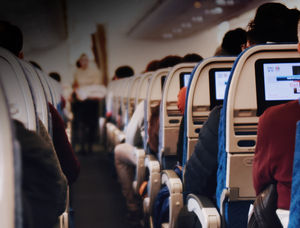

Aerospace: cockpit backlight, cabin signage, panel indicators and instrument illumination.

Application table
Application | Technology | Color options
Cockpit backlight | LED | 1000+ target color coordinate variations
Cabin signage | LED | 1000+ target color coordinate variations

Wamco Booted LED benefits

• Color-tuning to specific requirements
• Can achieve colors not normally available with traditional white or colored LEDs
• Tighter color control; typically +/- 0.02 for x & y coordinates
• Tighter brightness control; +/- 18% available for some package styles
• Typically provided in a single color and intensity bin per part number
• High CRI (≈95 typical) in white color space
• Excellent color and brightness stability
• Solid state reliability
• Extensive inventory available at Wamco worldwide headquarters

Capabilities & documentation
SMT LED Capabilities document (PDF) available. Booted LED documentation (PDF) available.

Technical specifications

• Model family: Booted LED
• Technology: Phosphor-converted LED with silicone boot over blue LED
• Intended applications: Cockpit backlight, Cabin signage, Panel indicators
• Color options: 1000+ target color coordinate variations
• Color control tolerance: Typically +/- 0.02 (x & y coordinates)
• Brightness control: +/- 18% available for some package styles
• Color rendering: High CRI (≈95 typical in white color space)
• Stability: Excellent color and brightness stability
• Packaging/binning: Typically single color and intensity bin per part number
• Reliability: Solid state reliability
