Aircraft lamp

LEDhalogenincandescent

Product overview

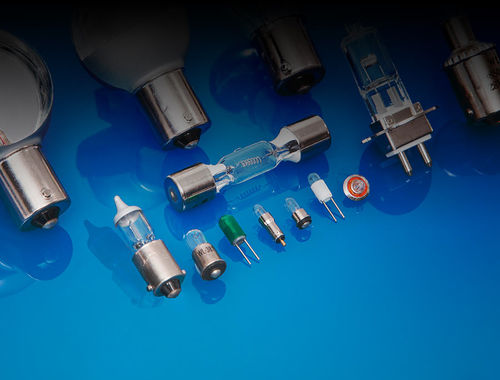

Wamco supplies a broad selection of subminiature and miniature incandescent lamps designed for aerospace environments. The WL product line covers voltages from 1.5 V to 130 V and envelope sizes from approximately 3 mm diameter up to and beyond 40 mm to meet diverse installation requirements.

Aerospace applications (summary)
Typical applications include warning lights, wing tip, navigation, logo, cargo area, reading lights and galley lighting on commercial, business and military aircraft. Available technologies include incandescent, halogen, quartz and neon depending on the application.

Applications table
Application | Technology | LED? | QPL | MIL | ANSI
1 — Warning | Incandescent | Yes (checked) | Yes (checked) | Yes (checked) | (none)
2 — Wing Tip | Halogen | (none) | (none) | (none) | ANSI (checked)
3 — Navigation | Incandescent | Yes (checked) | (none) | Yes (checked) | (none)
4 — Logo | Halogen/Quartz/Incandescent | Yes (checked) | (none) | (none) | ANSI (checked)
5 — Cargo Area | Halogen/Incandescent | Yes (checked) | (none) | Yes (checked) | Yes (checked)
6 — Reading Light | Halogen/Incandescent | Yes (checked) | (none) | (none) | Yes (checked)
7 — Galley | Incandescent/Neon | Yes (checked) | (none) | (none) | Yes (checked)

Wamco miniature benefits

• Used across commercial, business and military aircraft worldwide.
• Proven performance in regulated aerospace applications.
• FAA approvals and FAA‑PMA supplementary listings where applicable.
• Many items listed on Qualified Products List QPL‑6363 and compliant with relevant military standards.
• Inspected under FAA‑approved procedures conforming to FAA CFR 21.303(h).
• Extensive inventory available from Wamco global distribution.

Capabilities

• Envelopes: from T‑2+ and other sizes
• Bases: multiple base options available
• Voltages: 1.5 V to 130 V

Documentation
Aerospace capabilities brochure and product flyers (Navigation Lamps, Reading Lamps) are available as PDF resources on the product page.

Technical specifications

• Voltage range: 1.5 V to 130 V
• Envelope sizes: approximately 3 mm diameter up to >40 mm (example: T‑2+)
• Technologies: Incandescent, Halogen, Quartz, Neon (application dependent)
• WL product line: meets selected military and automotive specifications
• Approvals: FAA‑PMA supplemental approvals; multiple items on QPL‑6363
• Applications: Warning, Wing Tip, Navigation, Logo, Cargo Area, Reading Light, Galley
• Bases: various base types available
