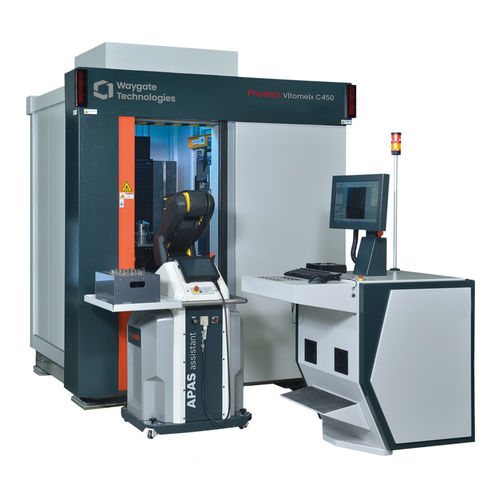

X-ray inspection machine Phoenix V|tome|x C450

surfaceaeronautical3D

Inspect and measure large samples with high precision and throughput The Phoenix V|tome|x C is a high performance compact industrial 450 kV minifocus CT system for inspection and 3D metrology of a wide applications range such as large light metal castings, turbine blades, AM parts etc. Waygate Technologies’ patented Scatter|correct technology automatically removes most scatter artifacts from the CT volume. This technological advancement provides image quality like that achieved with conventional fan-beam scanning but at speeds up to 100 times faster. Our Phoenix V|tome|x C is a compact 450 kV CT system with the largest possible scan volume and usable specimen weight especially for production and production-related areas such as production lines and quality assurance laboratories in battery manufacturing, in foundries and in aerospace – a flexible combination of semi-automated, non-destructive inspection and VDI 2630-1.3 specified 3D metrology. The Phoenix V|tome|x C comes standard with our exclusive 4 MP Dynamic 41|200 next-generation photodiode design industrial X-ray detector. It provides 10x increased sensitivity relative to the state of the art 200 µm pixel size DXR detectors producing 2-3x cycle time increase without image quality impact, making inspections and measurements more efficient and productive. Compared to 16-bit detectors, the optimized 14-bit technology offers the highest efficiency with a dynamic range of 10000:1 and thus saves time in use and also generates less noise in the image. As a premium option, the 100 µm / 16 MP Dynamic 41|100 detector provides a 2x resolution increase without cycle time impact.
