Runway baggage trailer

closedaluminum

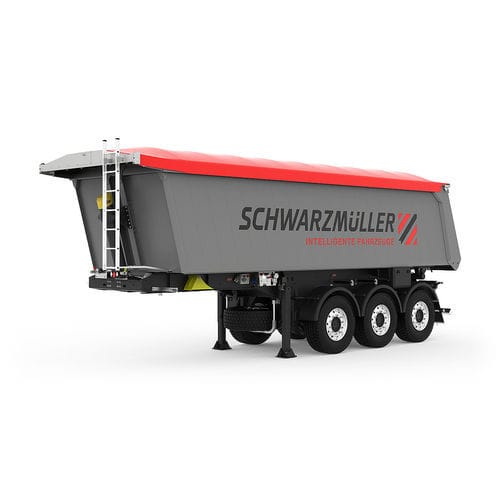

Stable and torsionally rigid aluminium chassis design with extra torsion shafts for a significant payload advantage Automatic lowering device for maximum stability Hard chrome-plated, high-quality front tilt cylinder Slanting front wall for optimised load distribution High-quality, hollow profile aluminium body for high resistance to impact and wear Standing platform at front wall for operating the roller tarpaulin Axles from well-known manufacturers such as SAF or BPW OPTIONAL: Removable grain feeder with dosing lever and discharge funnel in pendulum rear wall OPTIONAL: Body sizes available for different cargo volumes OPTIONAL: Unscrewed wear plate OPTIONAL: Quicksilver® plastic wear plate for perfect sliding of transport goods OPTIONAL: SmartBoard for reading data via the display on the vehicle (mileage, axle assembly load, brake diagnostics, etc.) TYPE DESIGNATION 3-AXLE SOLID ALUMINIUM BOX BODY TIPPER SEMITRAILER for road use for sand, crushed stone, digging, etc. DIMENSIONS Approx. body inside length 7,350 mm Approx. body inside width 2,340 mm Approx. body inside height 1,400 mm = Approx. cargo volume 24 m³ Total width 2,550 mm Approx. loading height when empty 415 mm above the fifth wheel coupling FRAME Welded aluminium frame design Replaceable 2" kingpin CHASSIS Air suspension with automatic lowering device operated by inductive switch and lowering lock operated by rotary switch on semitrailer
