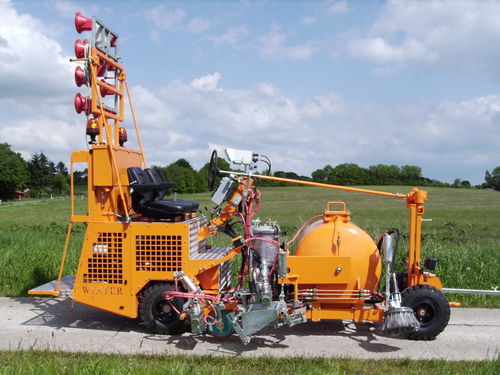

Self-propelled paint striping machine WKP 251 GTLR

for cold plasticfor runway

Engine - Kubota V1505T, 40,8 HP (30 kW) Fuel - diesel, capacity 55 liter Electrical system - 12 V, battery 66 Ah Steering - strong standard mechanical steering, on request hydraulic assisted steering / hydraulic Drive / brake system - hydrostatic drive, also acting as service brake, parking brake hydraulically controlled multi disc brake Wheels - front: 21×8 – 9, 5 hole-rim / rear: 21×8 – 9, 5 hole-rim Compressor - Boge screw type compressor, mechanically driven by poly-v-belt, Operating air pressure - 7 bar, silenced safety valve Paint pressure tank - with agitator, other container capacities on request Mixing-system - 98 : 2, fluid or powder, static mixer on request Marker unit - screed box for solid line Additional equipment - on request, agglomerate and profile Glass bead equipment - on request, metering bead dispenser up to 300 mm Empty- / total weight - approx. 1600 kg / 2600 kg Dimensions Length x width x height - approx. 4,00 m x 1,15 m x 1,80 m (without equipment)
