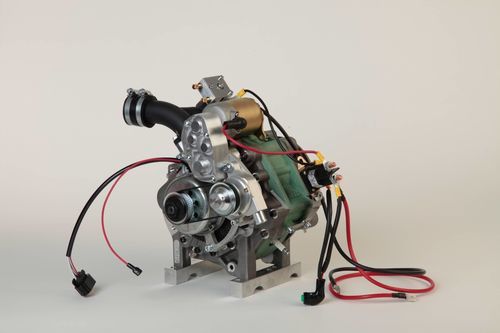

25 - 50kW Wankel engine Aixro XF40180g - 25kgsingle-rotorgasoline
Add to favorites
Compare this product
Characteristics
- Engine power
- 25 - 50kW
- Dry weight
- 180g - 25kg
- Number of rotors
- single-rotor
- Other characteristics
- gasoline
Description
Key specifications
Included features
Optional features
Applications
Technical details
- Type: 4-stroke single rotor rotary engine
- Power: 26 kW @ 6500 rpm
- Torque: >35 Nm from 4500 rpm
- Maximum speed: 7000 rpm
- Fuel: Gasoline (MoGas / AvGas) with 2% oil premix
- Fuel consumption: 5–8 l/h depending on application
- Dry weight: 18.7 kg (excl. exhaust, cooling and reduction)
- Displacement: 294 cm³
- Rotor cooling: charge cooled
- Housing cooling: liquid cooled
- Ignition: digital self-sustained system
- Alternator: 75 W / 6 A from 5000 rpm (optional 180 W / 15 A)
- PTO: V-belt pulley (Ø59 mm, PJ 16 stripes)
Included features
- Ceramic apex seals
- Mechanical single-cable dual inlet control
- Float carburettor with fuel pump and air filter
- Water channel vents for upside-down mount
- Water pump with timing belt drive
- Onboard starter
- Ignition with alternator
- Autoventilated V-belt pulley
- Stainless steel exhaust with 90° manifold and springs
Optional features
- Modular exhaust components
- Alternative intake manifolds
- Mounting plate with reduction drive (2.5:1 and 3:1)
- Custom modifications upon request
Applications
- Light sport and experimental aircraft
- Ultralights, gyroplanes and UAVs
- Portable power units and generator sets
- Test benches, R&D and small industrial drives
Technical details
- Type: 4-stroke single rotor rotary engine
- Capacity / Displacement: 294 cm³
- Power: 26 kW @ 6500 rpm
- Torque: >35 Nm from 4500 rpm
- Max. rpm: 7000 rpm
- Fuel: Gasoline (MoGas / AvGas) with 2% oil premix
- Fuel consumption: 5–8 l/h (application dependent)
- Dry weight: 18.7 kg (excl. exhaust, cooling, reduction)
- Rotor cooling: charge cooled
- Housing cooling: liquid cooled
- Ignition: digital self-sustained system
- Alternator: 75 W / 6 A from 5000 rpm (180 W / 15 A optional)
- PTO: V-belt pulley (Ø59 mm, PJ 16 stripes)
