INS inertial system GI710

INS inertial system
INS inertial system
Add to favorites
Compare this product


Characteristics

Type
INS

Description

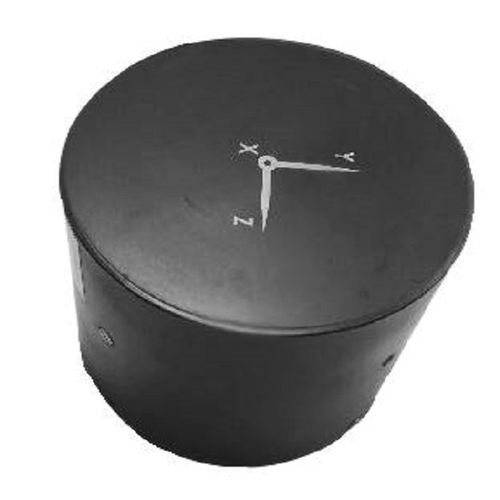

The BW-GI710 is a high-performance, high-precision fiber optic integrated navigation system developed by Bewis for the aerial mapping, unmanned aerial vehicles, sea-based and roadbed. Built-in three-axis fiber optic gyroscope, three-axis accelerometer, North Seeking Accuracy:≤2.5*Secant Latitude Gyro: Measurement Range: ±1000 deg/s Bias stability: 0.5°/h Bias repeatability: 0.5°/h ARW:≤0.05º/√h Scale factor non-linearity:≤150ppm Scale factor asymmetry:≤150ppm Scale factor repeatability: ≤150ppm Accelerometer: Measurement range: ±10g Bias stability: 0.1mg Bias repeatability: 0.1mg Scale factor repeatability:≤300ppm The BW-GI710 is equipped with a new integrated navigation sensor fusion algorithm engine. It is optimized for multipath interference and can meet the needs of long-term, high-precision and high-reliability navigation applications in urban and outdoor complex environments. The product supports a variety of sensors such as GNSS / odometer / DVL / barometric altimeter and has excellent scalability. It combines inertial measurement with satellite navigation and odometer information through multi-sensor data fusion technology. These can greatly improve the system's geographical adaptability.
