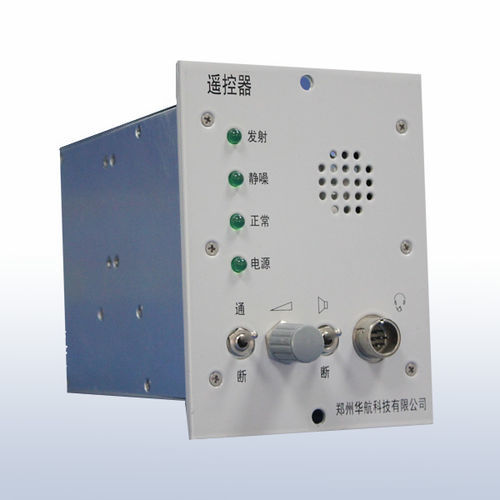

Audio panel HHKJ2000-YKA

Audio panel - HHKJ2000-YKA - Zhengzhou Huahang Technology Co., Ltd.
Audio panel - HHKJ2000-YKA - Zhengzhou Huahang Technology Co., Ltd.
Audio panel - HHKJ2000-YKA - Zhengzhou Huahang Technology Co., Ltd.  - image - 2
Add to favorites
Compare this product

fo_shop_gate_exact_title

Description

HHKJ2000-YKA Audio applies to control tower or airway command. If interfaced into VHF transceiver directly, the controller can realize controlling the transceiver in short distance. If connected with transmission equipment like PCM via HKADP AF Distributor, it can realize controlling the transceiver in long distance. Technical Data Transmit Line output level - -16 dBm ~ 0 dBm,600 Ω Audio distortion - ≤2% AF response - ≤±2 dB(300 Hz ~ 3.4 kHz, refer ~ 1kHz) Receive Line input level - -16 dBm ~ 0 dBm,600 Ω Audio distortion - ≤3% AF response - ≤±2 dB(300 Hz ~ 3.4 kHz, refer ~ 1kHz) Loudspeaker output level - ≥0.5 W,8 Ω Temperature range Operating temperature - -20℃ ~ +65℃ Storage temperature - -40℃ ~ +85℃ Communication distance - ≥50m Dimensions - 1/4 19”(3U) 100 mm × 132 mm × 175 mm(W×H×D) Weight - ≤1kg
