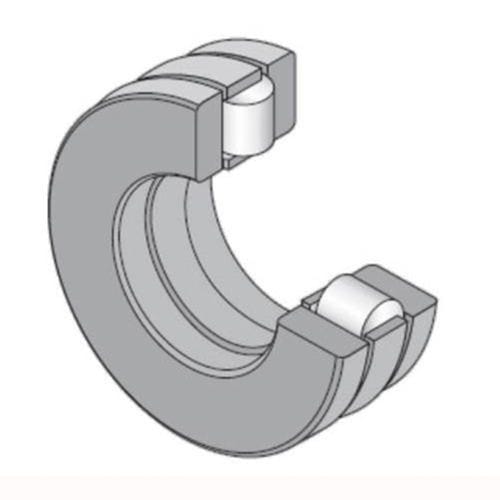

Rolamento de encosto de rolos cilíndricos 81113T2

de agulhasaxialcom gaiola

Marca - NTN d - Bore diameter of support washer IR - WS - 65 mm D - Outside diameter of support washer OR - GS - 90 mm d1 - External diameter of support washer IR - WS - 90 mm D1 - Bore diameter bearing washer OR - GS - 67 mm T - Thrust bearing height - 18 mm Dw - Rolling element diameter - 7,5 mm Dc1 - Roller cage bore diameter - 65 mm Dc - Roller cage outer diameter - 90 mm rs - Min fillet radius - 1 mm Cage assembly reference - K81113T2 Bearing ring (inner ring) WS - WS81113 Bearing ring (outer ring) GS - GS81113 Ea - Rollers reference outer diameter - 85,2 mm Eb - Rollers reference inner diameter - 68,8 mm Peso - 0,34 kg Cage assembly mass - 0,09 kg Bearing ring (inner ring) WS mass - 0,125 kg Bearing ring (outer ring) GS mass - 0,125 kg
