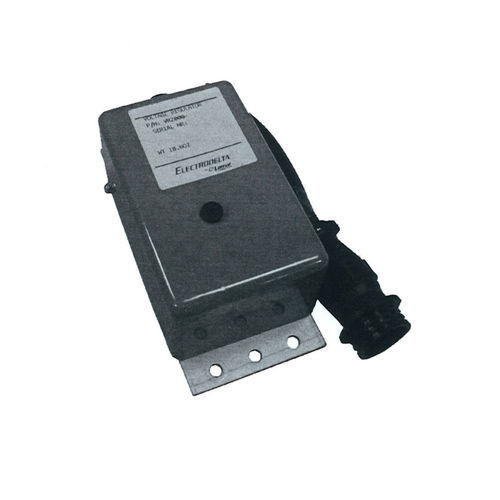

Airliner voltage regulator VR2000-14-3

Regulator 14 volt - Various Aircraft - Open the alternator control sw. before connecting or disconnecting the regulator/alt. cont. unit. If greater voltage régulation accuracy is desired, the yellow wire, (Pin 6) (point of régulation) may be routed to a location doser to any voltage sensitive equipment power bus. Input Pin 7 (orange wire) is power in for the protection circuits and must be connected to a separate circuit breaker. VR2000-14-3, Is the same as the -1 shown except does not have bus low function (these wires are not installed). This circuit must be protected by fuse at the alternator. Weight is .7 IbsMAX
