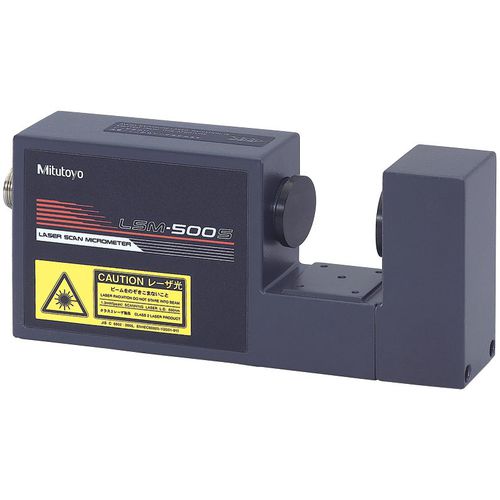

Non-contact laser scanner LSM-500S

for aeronautics

High Accuracy Non-contact Measuring System Measuring range starting from ø5 μm. Provides ultra-high accuracy with a linearity of ±0,3 μm over the entire measuring range (5 μm up to 2 mm). Ultra-high repeatability of ±0,03 μm. High scanning rate of 3200 scans/s Resolution (selectable): 0,00001-0,01 mm Linearity at 20°C *¹: ±0.3 μm Positional error *²: ±0.4 μm Measuring region: 1 x 2 mm Laser wavelength: 650 nm, Visible Scanning rate: 3200 scans/s Scanning speed: 76m/s Applicable laser standards: IEC, FDA Repeatability (±2ơ): ±0.03 μm Inch-Metric: Metric
