CNC milling machine TARUS PMT

swiveling-spindlefor the aerospace industrymulti-axis

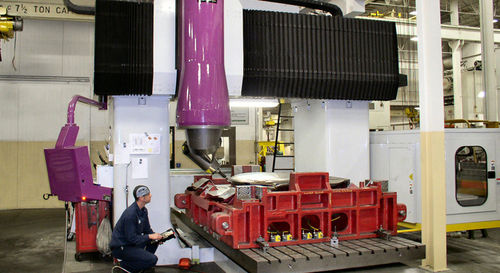

TARUS PMT, Portal Milling Machine; ideal for Automobile and Aerospace Tooling and FixturesThe TARUS PMT Series is a Fixed Portal, Moving Table Multi-Axis CNC Machining Center. Intended uses are Contour Milling of Stamping Dies, Injection Molds, Assembly Fixtures and other Automotive and Aerospace Tooling. The PMT features the Heidenhain TNC-640 CNC Control.The PMT-C90 is equipped with the TARUS 2-Axis Clamping Angle Head. Range is 0-90º degrees in the A axis and 360º in the C Axis. Spindle angle is clamped with springs and unclamped hydraulically for rotation via the servo motors. A seamless ring induction scale is fit directly to the rotating axes. The Clamping Head’s 50 Taper Spindle is a directly driven by a water cooled Synchronous motor, 0-10,000 rpm, 29 kW, 176 Nm peak. OPTIONAL MILLING HEADSThe PMT-C45 features a 2 Axis Clamping Milling Head which is similar to the C90, but the effective tipping of the Spindle is 0-45 degrees. This design features a stronger A Axis due to a larger clamping ring and stouter casting. This C45 is unsurpassed for milling unintended stock, repair welds, design changes and for semi-finishing ribs and features that are inacessible to a straight spindle and would damage a finishing spindle.
