Machining centers for the aerospace industry

X travel: 870 mm
Y travel: 500 mm
Z travel: 1,598 mm

... accuracy machining Large swing and Y-axis stroke for large workpieces. Powerful turning and milling spindles plus rigid machine construction provide unsurpassed productivity. Long boring bar system - Higher productivity ...

X travel: 3,055 mm
Y travel: 1,700 mm
Z travel: 1,800 mm

... spindle for deep ID turning/machining in addition to the machining capabilities of the INTEGREX e-V II series. INTEGREX e-RAMTEC Revolutionary multi-tasking machine - the complete fusion of machining ...

X travel: 4,200 mm
Y travel: 2,450 mm
Z travel: 660 mm

Designed for the high-accuracy and high-efficiency machining of large components Large, high accuracy double-column vertical machining center Machining of large, flat ...

X travel: 2,600 mm
Y travel: 1,500 mm
Z travel: 1,200 mm

5-axis high speed CNC machining center with monobloc structure Its compact design easily fits into any production environment, while still benefitting from the large working envelope. The monobloc ...

X travel: 3,600 mm - 6,000 mm
Y travel: 2,600, 1,800 mm
Z travel: 1,200 mm

5-axis high speed machining centers 5-axis high speed movable-bridge machining centers specifically designed for high speed machining of composite materials ...

X travel: 730 mm
Y travel: 730 mm
Z travel: 680 mm

a61nx-5E Horizontal Machining 5-Axis The a61nx-5E 5-Axis horizontal machining center offers the right-size solution for small aerospace parts production The a61nx-5E ...

X travel: 1,520 mm
Y travel: 1,100 mm
Z travel: 1,350 mm

Horizontal Machining 5-Axis Aerospace Part Production on the MAG1 MAG1 - Ideally suited for high-productivity machining of aluminum monolithic aerospace parts under ...

X travel: 3,000 mm
Y travel: 1,500 mm
Z travel: 1,000 mm

MAG3 Horizontal Machining 5-Axis MAG3 Built for Aerospace Machining The MAG3 5-axis horizontal machining center is specifically designed for high-productivity ...

The perfect closed cell CNC 5 axis machining center. Multiax has developed a 5 Axis machining center for fast and accurate machining of complex 3D surfaces ...

The smartest closed cell CNC 5 axis machining center for composites is compact, enclosed, with a moving bridge design, engineered to perform highly accurate 3D operations. The bridge is moved with a twin ...

Compact, yet highly powerful, precise and versatile 5-axis CNC milling and machining center mounted on a monobloc basement. Its welded and reinforced, stress relieved steel structure is designed for heavy-duty ...

X travel: 4,000 mm - 8,500 mm
Y travel: 2,000 mm - 4,000 mm
Z travel: 1,200 mm - 1,500 mm

... simplified maintenance • system designed by Jobs for machining several materials, such as carbon, titanium • ergonomic operator places that grant an excellent surveillance of the machining operations ...

X travel: 108, 128, 167, 207, 246 in
Y travel: 134, 154, 95, 114 in
Z travel: 24 in

... Simplify machining set-up, increase productivity SNK has been manufacturing Double Column Machining Centers for over 50 years, with over 5,000 units installed world-wide. RB-M Series ...

X travel: 246, 167, 206 in
Y travel: 114, 150, 177 in
Z travel: 23, 39 in

... capacity 5-Axis simulteneous machining The RB-F Series of 5 axis profilers boasts massive spindlehead and ram perfect for demanding multi-angle machining and simultaneous 5 axis contouring. They are ...

X travel: 207, 246, 285 in
Y travel: 106, 126, 146, 165 in
Z travel: 32, 39 in

... demanding die and mold applications. These machines handle a wide range of cutting demands from roughing to super-fine finish machining. In fact, the DC Series is world renowned for providing the smoothest and cleanest ...

X travel: 3,500 mm - 20,000 mm
Y travel: 1,250 mm
Z travel: 2,000 mm - 2,700 mm

... multi working zones. Due to its application flexibility, the machine is suitable for moulds / dies machining, structural aerospace parts and general machining.

X travel: 800 mm
Y travel: 1,095 mm
Z travel: 1,050 mm

DMC 80 H linear The DMC H linear- line offers a wide area of operations Max. X travels 800 mm Max. Y travels 1,095 mm Max. Z travels 1,050 mm Max. table load 900 kg Table length 630 mm Table width 630 mm Dynamic - Highly ...

X travel: 762 mm
Y travel: 460 mm
Z travel: 460 mm

Our new, next-generation, 5-axis vertical machining center is specifically designed to manufacture high-precision parts and deliver impressive metal removal rates in a compact design. Its solid double-column ...

X travel: 1,450 mm - 3,400 mm
Y travel: 1,200 mm - 1,900 mm
Z travel: 1,300 mm - 2,850 mm

... . These machining centers have excellent static and dynamic properties as well as a tried and tested rotatable head, making them the benchmark for heavy chip removal in titanium and Inconel part for the ...

X travel: 1,200 mm
Y travel: 1,000 mm
Z travel: 700 mm

... performance and efficient machine dynamics with a linear axis speed of 60m/min and an acceleration speed of 6m/sec2. This machining centre mounts a rotary tilting table which incorporates direct drive technology and ...

X travel: 800 mm
Y travel: 800 mm
Z travel: 550 mm

... 42 machining centre from the High-Performance-Line makes for an effective entry into MT technology – and it becomes a high-performance milling and turning centre. This includes various applications in the tool and mould ...

X travel: 600, 300, 1,150, 425 mm
Y travel: 600 mm
Z travel: 500 mm

... suited for the machining of non-ferrous metals – including aerospace parts. With a monobloc, box-in-box, 3-axis unit and a double swivel table, it is a classic SW machine. The BA W06-W, BA W06 and ...

X travel: 250 mm
Y travel: 250 mm
Z travel: 250 mm

Z travel: 10 in

... machine footprint. Now with the option of a traveling carousel for increased tool capacity, the system is also capable of machining pass-through parts. Our engineers have over 70 years of combined CNC experience with ...

Y travel: 3 mm
Z travel: 1 m
Rotational speed: 30,000 rpm

... Axis Profile Beam Machine Center with an integral “Smart Fixturing™” system. Designed for fast, highly automated performance in “one off” demand-driven manufacturing environments including those commonly found in aerospace ...

X travel: 1,000 mm
Y travel: 800 mm
Z travel: 850 mm

... X, Y, and Z) to realize the feed rate of 48 m/min and acceleration of 0.5 G, which is the highest in this class.　　　　　　　　　　●Center trough eliminates troubles caused by cutting chips.　　　　　　　　　●In addition, HW63A is equipped ...

X travel: 1,600, 2,200 mm
Y travel: 2,500, 3,200 mm
Z travel: 1,250 mm

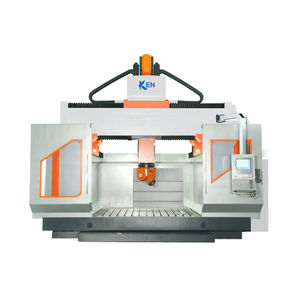

Gantry Type. Box in Box symmetrical design One Piece structure Design. Linear Motor Drive Direct-drive motor two-axis milling head.

X travel: 2,600 mm
Y travel: 1,500 mm
Z travel: 1,000 mm

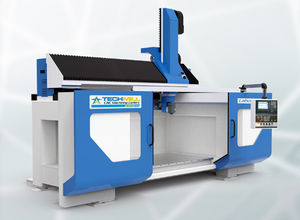

LaborMac is a 5-axis machining centre specifically developed to optimize the machining of molds and parts in aluminum and composite.The extreme rigidity provided by the monolithic structure with Gantry ...

This open configuration Horizontal Arm 5 Axis Mill is ideal for milling large Aerospace Tooling that would otherwiser require a very wide and very tall gantry in order for the tooling base to fit inside the work area.Linear ...

X travel: 2,000 mm - 6,000 mm
Y travel: 2,000 mm - 5,000 mm
Z travel: 1,000 mm

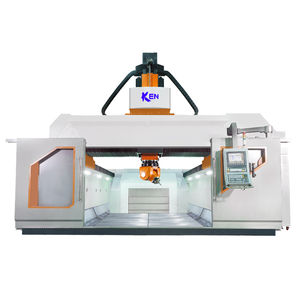

... U-frame structure Linear Motor in XY axis , rapid tracerse 60/min Dual ball screw in Z axis 5 axis aerospace machining

Rotational speed: 100,000 rpm

Design Features Four-axis air bearing Conventional machining or diamond turning 100,000 rpm spindle option Integrated machine base, isolation system, and electronics
