Overview
The SPINJET coolant-driven HSM jet spindle uses the machine's existing coolant flow to rotate a high-speed spindle without an additional energy source. Designed for high-speed milling operations and offering wireless real-time RPM monitoring to optimize cutting conditions according to the actual spindle speed at the workpiece.

Key features

• Coolant-driven spindle — uses existing machine coolant flow; no additional energy source required.
• High-speed operation options: 20,000 / 30,000 / 40,000 RPM (depending on machine and configuration).
• 4-5 times faster (marketing claim) compared with standard approaches for targeted HSM applications.
• Milling capability examples: steel up to 3.0 mm, aluminum up to 6.0 mm (indicative).
• Wireless real-time RPM monitoring — enables optimization of cutting conditions according to actual rotational speed.

Mounting & compatibility

• Modular ER32 shank collet chuck option with a special tightening nut — suitable for standard tool holders with an ER32 seat.
• Integral (one-piece) options with various spindle adaptations: HSK A63; C5 & C6; BT 30 & BT 40; CAT 40 & DIN69871-40.
• Compatible with standard ER11 collets for tool clamping (for compatible variants).
• Designed to be plug & play — as easy to connect as any other tool in the machine magazine.

Operation & benefits

• Rotates by coolant flow — no extra motor or electrical connection required for the spindle itself.
• Wireless RPM feedback provides real-time spindle speed at the workpiece to allow process tuning (feed, toolpath, cutting parameters) based on actual rpm rather than nominal machine spindle rpm.
• Improves HSM performance on machines that can supply sufficient coolant flow/pressure.

Use cases / applications

• High-speed milling, small-diameter milling, drilling, engraving, chamfering and other HSM/finish-to-rough tasks where very high rotational speed on small tools is beneficial.
• Upgrade option for existing machines that have sufficient coolant supply but lack high-speed spindles.

Included media (product gallery)

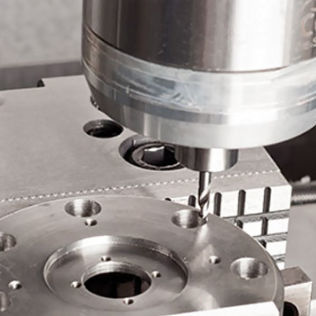

• Multiple product and application images (gallery includes active images showing the SPIN-JET product and process examples such as chamfering, drilling, engraving, grinding, milling and thread-milling).

Caractéristiques / spécifications techniques

• Model name / commercial denomination: SPINJET
• Drive: coolant-driven (uses machine coolant flow)
• RPM options (typical): 20,000; 30,000; 40,000 (dependent on coolant flow/pressure and variant)
• Milling capability examples: steel milling up to ~3.0 mm; aluminum milling up to ~6.0 mm (application-dependent)
• Mounting variants: modular ER32 collet chuck; integral HSK A63; C5 & C6; BT30 & BT40; CAT40; DIN69871-40
• Tool clamping compatibility: standard ER11 collets (for compatible variants)
• Installation: plug & play-type connection to tool magazine; no additional spindle motor required
• Monitoring: wireless real-time RPM monitoring integrated for process optimization
