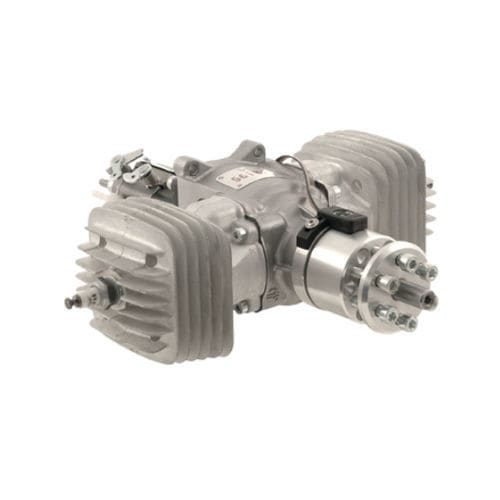

0 - 10hp piston engine 3W-56i B2
0 - 10kgfor drones2-stroke

0 - 10hp piston engine
0 - 10hp piston engine
Add to favorites
Compare this product


Engine power
0 - 10hp
Dry weight
0 - 10kg
for drones
Number of cylinders


Cylinder capacity - 57.0 ccm Power - 5.17 HP / 3.80 KW Bore diameter - 36.00 mm Stroke - 28.00 mm Rpm range - 1.500 – 8.500 U/min-1 Weight incl. ignition - 1.850 kg incl. ignition Crankshaft - 3 ball bearing Oil/gasoline ratio - 1:50 / 2% Mix Ignition - 6.0 – 8.4 V DC The engine is very well suited for 3D flight as well as for flight models XTRA/230 and VOTEC/230 – FUNS or another Funflyer with a model mass of up to 9 kg. The engine is moreover a good choice for towing or scale models. It impresses with quiet running behaviour thanks to its 3-bearing crank-shaft. The ‘little’ boxer engine impresses with its running smoothness and weight advantage. The total weight from the engine and muffler system is nearly identical to that of a comparable 3W 55i with muffler system. Due to the matched 3W muffler system, the engine is comparable to other manufacturers’ 70 ccm engines because the performance data are analogous. The engine is suitable for a wide variety of models and distinguishes itself through its reliability and durability. The microprocessor-controlled ignition enables simple engine control. The programmed ignition curve is exactly matched to the engines and guarantees good running characteristics in all rotation-al-speed ranges. The standard ignition can be operated with a voltage of 6 V up to 8.4 V (2-cell LiPo).
