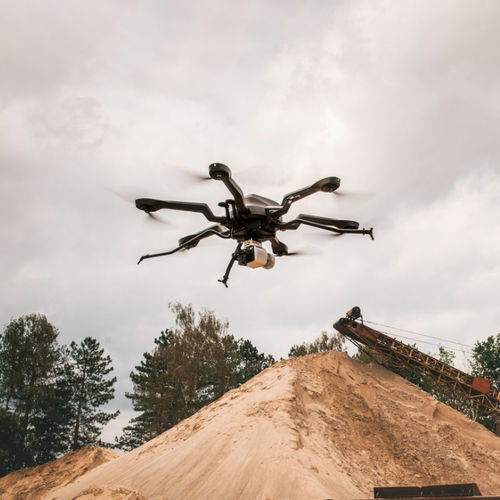

Professional UAV NOA

mappinginspectionhexacopter

Designed to perform- crafted by hand in The Netherlands. Motors Acecore brushless motors Autopilot Orange or Blue Cube Power Tattu 11.000A, 17.000A or 23.000A Wind resistance 28 knots or 14.4 m/s continuous MTOW 36.9 kg/ 81.18 lbs DOWNLOAD SPECSHEET Payload weight Datalink range Build True carbon fiber ENDURANCE The Acecore Noa hexacopter carries A 3kg/ 6.6lbs payload such as the Sony A7R iv and Gremsy T3 V3 gimbal for over 40 minutes. Land surveying, 2D & 3D LiDAR mapping, wind turbine/ powerline inspection and a wide array of professions will find the extended endurance especially useful, covering more ground in a day than ever before. LiDAR PLATFORM Noa’s excellent flight performance, endurance, and internally stabilized quickrelease make it a workhorse for LiDAR applications. It is capable of laser-guided terrain following and has a retractable landing gear for a 360 degrees unobstructed field of view. Noa’s generous payload capacity allows users to configure it with the highest spec LiDAR systems reaching accuracies up to 10mm with photo-realistically colored point clouds. TOOLLESS SETUP Four battery packs ranging from 11A-23A can be taken from Noa’s carbon fiber flight case and locked into the drone by the new shark fin battery latch. Each of the six booms mount to Noa’s centerpiece using double action quick release locks. Screw-on propellor adapters result in a completely toolless setup of the system.
