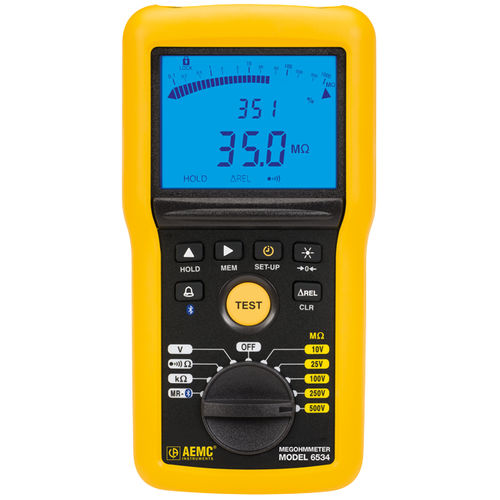

True Megohmmeter®
500V Insulation and Multi-Function Tester (Resistance, Continuity and Voltage)
10V, 25V, 100V, 250V and 500V Insulation Test Voltages
50GΩ Max Insulation Resistance
Timed Test Mode up to 40 minutes for Insulation Resistance Test
Test Lock feature for hands free timed measurements up to 15 minutes
Continuity tests at 20mA or 200mA
Test lead resistance compensation for accurate low resistance measurements
True RMS AC/DC Voltmeter up to 700V
Ohmmeter to 1000kΩ
Auto discharge after Insulation Test
Hold function to "freeze" readings
Large and bright dual display with blue backlight
Auto Standby Feature due to inactivity saves battery power
1300 Measurement storage in memory
Bluetooth communication with included DataView software
Optional Remote Probe accessory
AC/DC Voltage Measurement
Range - 0.3 to 700V
Accuracy - ±(3% R + 2ct)
Resolution - 1 to 99.9V: 0.1V
100 to 999V: 1V
1000 to 4000V: 2V
Frequency Range - DC & 15.3 to 800Hz
Input Impedance - 400kΩ
Insulation Measurement
Test Voltage / Resistance Range - 10V: 2kΩ to 1GΩ
25V: 5kΩ to 2GΩ
100V: 20kΩ to 10GΩ
250V: 50kΩ to 25GΩ
500V: 100kΩ to 50GΩ
