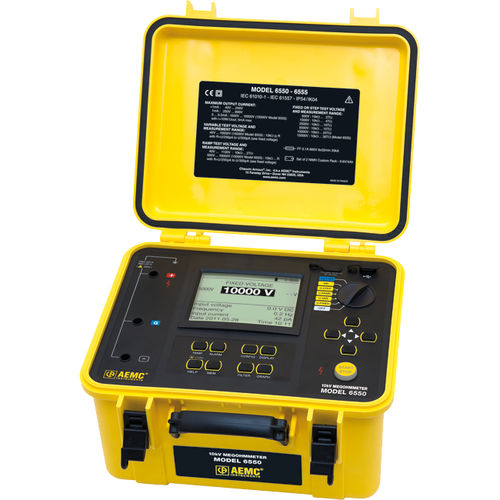

Portable megohmmeter 6550
for the aeronautical industry

portable megohmmeter
portable megohmmeter
portable megohmmeter
Add to favorites
Compare this product


Characteristics

Mobility
portable
Domain
for the aeronautical industry
Resistance range

Min.: 10 kOhm

Max.: 25,000,000,000 kOhm

Description

The Megohmmeter Model 6550 is a high-end portable measuring instrument intended for the measurement of a wide variety of electrical insulation resistance values on cables and devices operating at high voltage. It is the only fully automated 10,000V graphical insulation tester. The True Megohmmeter® Model 6550 is packaged in a rugged case that is IP65 when closed. Test results and configuration information are displayed on a graphical LCD screen, and are exportable via DataView® (provided). This megohmmeter can operate on battery or AC power. The Model 6550 also offers the ability to program up to three step voltage profiles (from 40 to 10,000V), each containing up to ten steps. There are also ramp profiles and three programmable test voltages in addition to the standard fixed voltages of 500, 1000, 2500, 5000 and 10,000V. AC/DC Voltage Measurement Range - 1 to 4000V Accuracy - 1 to 99.9V: ±(1% R + 5ct) 100 to 4000V: ±(1% R + 1ct) Resolution - 1 to 99.9V: 0.1V 100 to 999V: 1V 1000 to 4000V: 2V Frequency Range - 1 to 2500V: DC or 15 to 500Hz 2501 to 4000V: DC Input Impedance - 3MΩ Insulation Measurement Test Voltage / Resistance Range - 500V: 10kΩ to 2TΩ 1000V: 10kΩ to 4TΩ 2500V: 10kΩ to 10TΩ 5000V: 10kΩ to 15TΩ 10,000V: 10kΩ to 25TΩ
