Industrial UAV NOVA series

surveillancemappingagricultural

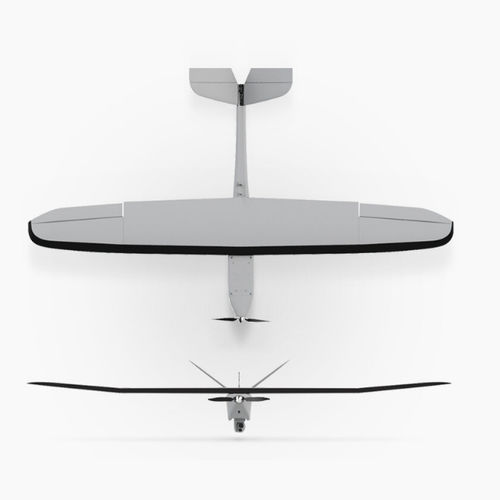

OWER (MAX): 50 W FLIGHT AIRSPEED (CRUISE): 30 kts AIRSPEED (MAX): 58 kts ALTITUDE (MAX): 10,000 ft ENDURANCE (AT CRUISE): 90 minutes RATE OF CLIMB (MAX): 1800 ft/min RATE OF DESCENT (MAX): 1100 ft/min TURN RATE: 30 degrees/sec GLIDE SLOPE OR PARACHUTE RECOVERY: 4/1 DATA LINK WAVEFORM: Army sUAS DDL Waveform 1.7 FREQUENCY: 1625-2110 Mhz ENCRYPTION: FIPS 140-2 AES 256 PROTOCOL: MAVLink RANGE: 15km DESIGN AND DEVELOPMENT The Nova line of fixed wing drones was Altavian’s first and flagship product. The system was built for maximum endurance in difficult environments. Early sketches of the Nova Block 2 envisioned a fixed wing drone with a single-piece chassis with v-tail ruddervator carrying modular sensor payloads. NOVA F7200 FIXED WING DRONE The final iteration of the Nova, the Nova F7200, is a hand-launched fixed wing drone capable of flying for up to 90 minutes. The system has an optional parachute landing as well as custom, drop-in modular payloads for multiple advanced sensors. The drone can fly in winds of up to 30 mph and has optional water-landing capability. GEOMATICS The Nova, as a rugged fixed wing drone, was the perfect system for large-scale geomatics projects in challenging environments for data collection. The ability to land on water, endure tough terrain, high temperatures, and wind made it an ideal system for research and mapping. INTELLIGENCE, SURVEILLANCE, RECONNAISSANCE The Nova’s modular payload design opened up new use cases for defense markets achieving TRL-9 as a fixed wing drone. An integrated video gimbal and high resolution sensor package were a natural fit for ISR operations using the Nova’s superior range and flight time.
