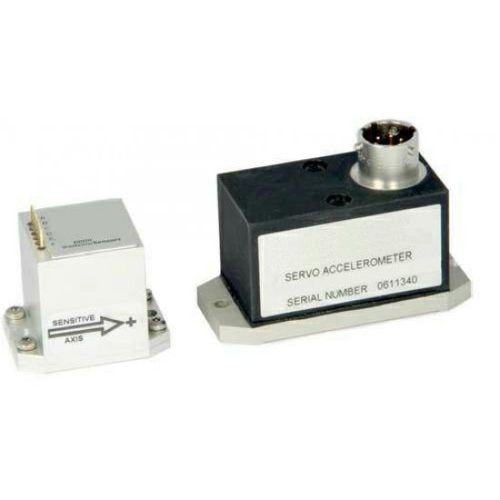

Accelerometer without display AAA215/A220
Vdcfor the aerospace industry

accelerometer without display
accelerometer without display
accelerometer without display
accelerometer without display
Add to favorites
Compare this product


Characteristics

Type
without display
Output signal
Vdc
Domain
for the aerospace industry
Acceleration range

Max.: 196 m/s² (643 ft/s²)

Min.: 10 m/s² (33 ft/s²)

Frequency

Max.: 150 Hz

Min.: 90 Hz

Description

- Measurement range: ±1g to ± 20g - Non-Linearity: ±0.05 to ±0.10 %FRO - Output: ± 5 Volts dc - Operating temperature: -55°C to +95°C (-67 to 203°F) - Frequency response: low frequency, high sensitivity AAA215/AAA220 Series Miniature Linear Servo Accelerometer The Altheris Sensors’ AAA200 range of Servo Accelerometers measure vector acceleration with high accuracy using a closed loop force balance torquer mechanism. A pendulous mass develops a torque proportional to the product of its mass unbalance and the applied acceleration. The movement of the mass is detected by a position sensor whose output signal is connected to a servo amplifier. The resulting current is fed into the torque motor which then develops a torque exactly equal to, but directly opposed to the initial torque from the pendulous mass. The mass then stops moving, assuming a position minutely differing from it’s initial zero ‘g’ position. Simultaneously, the current to the torque motor is fed through a stable resistor to provide an output voltage proportional to the applied acceleration. The system is electronically damped by means of a phase advancing network within the integrated servo amplifier. By adjusting the parameters of the servo amplifier and related electronic networks, the operating characteristics of a servo accelerometer can be optimised to suit a particular application.
