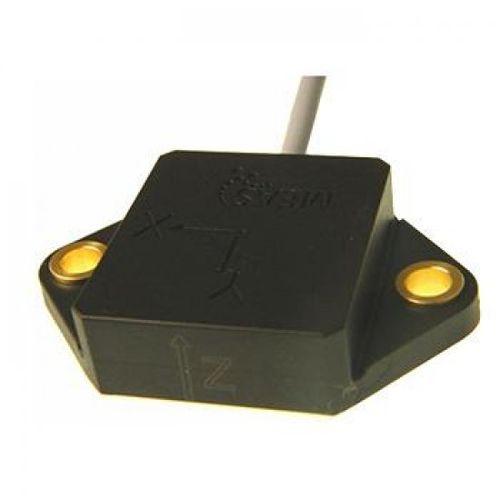

Accelerometer without display 4020

2-axistriaxialMEMS

Low noise, signal conditioned dual and triaxial DC acceleration sensor packaged in a durable molded housing About the 4020 | 4030 Amplified DC Accelerometers The Model 4020 & 4030 are low noise, signal conditioned DC accelerometers packaged in a durable molded housing. The accelerometers are offered in ±2g & ±6g ranges with a nominal 0-200Hz bandwidth. The model 4020 is a dual axis configuration (X&Y axes) while model 4030 is a triaxial configuration. The capacitive silicon MEMS sensing element offers high resolution and long term stability for critical measurement applications. Key features 4020 | 4030 5-30Vdc Excitation Voltage Environmentally Sealed Low Pass Filtered Output Capacitive Silicon MEMS Element Integral #24 AWG Cable Self-Test Enabled Applications 4020 | 4030 Low Frequency Vibration Monitoring Tilt & Inclination Measurement Motion Measurements Structural Monitoring Laboratory Testing
