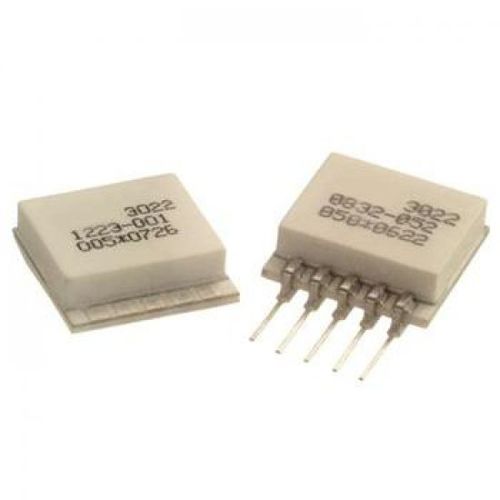

Accelerometer without display 3022/3028
MEMSpiezoresistivemV

accelerometer without display
accelerometer without display
Add to favorites
Compare this product


Characteristics

Type
without display
Technology
MEMS, piezoresistive
Output signal
mV
Domain
for the aerospace industry
Acceleration range

Min.: 20 m/s²
(66 ft/s²)

Max.: 1,961 m/s²
(6,434 ft/s²)

Frequency

Min.: 0 Hz

Max.: 2,000 Hz

Description

Embedded accelerometer 3022/3028 - Measurement range: ±2 to ±200g - Non-Linearity: ±0.5 %FSO - Output: 0.15-20.0 mV/g - Operating temperature: -40 to 125°C - Frequency response: Up to 2000Hz Model 3022/3028 Accelerometer Piezoresistive MEMS DC Response Circuit Board Mountable Low Cost The Model 3022 is a silicon MEMS accelerometer in a Wheatstone bridge configuration. The accelerometer is packaged on a ceramic substrate with an epoxy sealed ceramic cover and is designed for adhesive mounting. The accelerometer is offered in ranges from ±2g to ±200g range and provides a flat frequency response to minimum 2000Hz. The silicon MEMS sensor is gas damped and incorporates over-range stops for high-g shock protection. For a similar accelerometer designed for bolt mounting, see the Model 3028. Features - Adhesive Mounted - ±0.5% Non-linearity - Open Wheatstone Bridge - DC Response - Gas Damping - Built-in Overrange Stops - Low Power Consumption Applications - Vibration & Shock Monitoring - Motion Control - Impact & Shock Testing - Modal Analysis - Embedded Applications - Machinery
