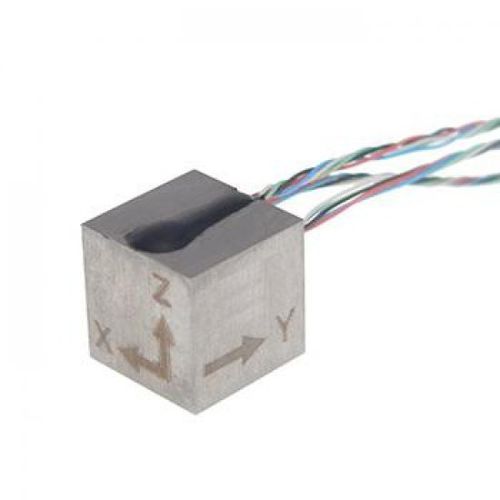

Accelerometer without display EGAXT3

triaxialmVfor the aerospace industry

3-axial acceleration sensor in miniature design with an overload limit of 10,000g for all 3 axes The Model EGAXT3 miniature accelerometer combines a damping ratio of 0.7 (nominal) with built-in over-range stops that protect the unit against 10,000g shocks. This is ideal for applications which may experience rough handling or in situations where the accelerometer must survive a high initial overload in order to make a low g measurement. The model EGAXT3 features a common piezo-resistive Wheatstone Bridge design with a mV output. The accelerometer incorporates an inline temperature compensation module which ensures accurate output over full operating temperature range Key features EGAXT3 Miniature Triaxial, Low Weight Static and Dynamic Measurement Frequency Response from DC to 3000 Hz ±1% Non-Linearity -40°C to +120°C Operating Range 10,000g Over-range Protection Applications EGAXT3 Flight Test & Control Launch Vehicles Drop Testing Impact & Shock Testing Munitions Testing Pile Driving Harsh Environments
