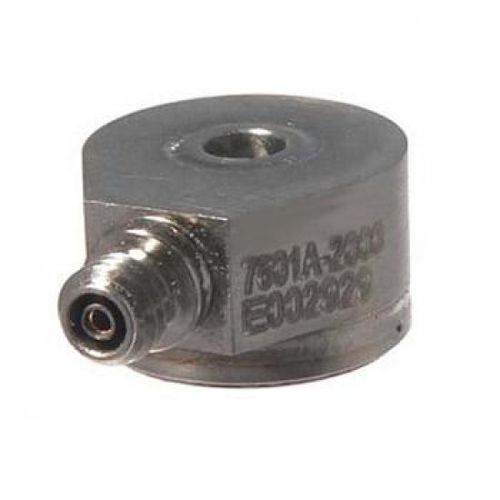

Vibrating accelerometer 7100A/7101A
without display1-axispiezoelectric

vibrating accelerometer
vibrating accelerometer
vibrating accelerometer
Add to favorites
Compare this product


Characteristics

Type
without display
Number of axes
1-axis
Technology
piezoelectric, vibrating
Domain
for the aerospace industry
Acceleration range

Min.: 490 m/s²
(1,608 ft/s²)

Max.: 9,807 m/s²
(32,175 ft/s²)

Frequency

Min.: 0 Hz

Max.: 15,000 Hz

Description

Single-axis piezoelectric vibration sensor 7100A/7101A - Sensitivity: up to 100mV/g - Range: 50 to 1000 g - Max. frequency response: 15.000 Hz - Operating temperature: -55°C to +150°C 7100A/7101A Accelerometer - EPE Accelerometer - Wide Bandwidth to 10kHz - M3 Side Connector - Miniature, Lightweight (2.4gm) The Model 7100A/7101A is a miniature, high performance IEPE accelerometer available in ±50g to ±1000g dynamic ranges. The accelerometer is designed for high frequency vibration and shock measurements and offers a wide bandwidth to >15kHz utilizing stable piezo-ceramic crystals in annular shear mode. The model 7100A/7101A features a hermetically sealed titanium housing and the popular through hole mount configuration. The standard operating temperature range extends from -55°C to +150°C. Features - ±50g to ±1000g Dynamic Range - Wide bandwidth up to 15kHz - Welded Construction, Titanium - Hermetically Sealed - Annular Shear Mode - Stable Temperature Response - Miniature, Through-Hole Mount Applications - Vibration & Shock Monitoring - Laboratory Testing - Modal Applications - High Frequency Applications - General Purpose Usage
