Lightweight inertial system DMU30

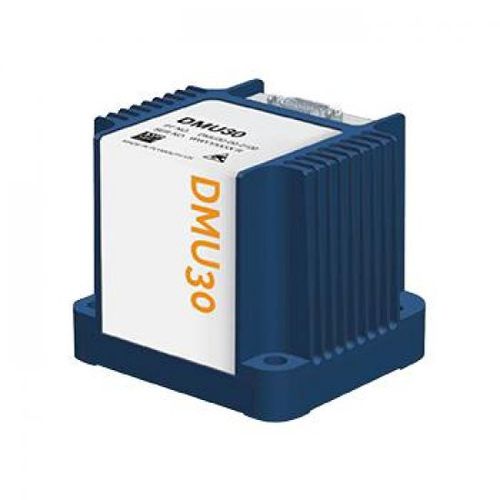

High performance inertial system DMU30 - Precision 6-DOF MEMS Inertial Measurement Unit - Excellent Bias Instability and Random Walk Angular - 0.2°/hr, 0.02°/vhr Linear - 30µg, 0.05m/s/vhr - Angular Rate Range: ±200°/s - Supply voltage: 4.75 to 36V - Operating temperature: -40ºC to +85ºC - Acceleration range: ±10g - 1 cubic inch unit - RS422 interfaces - Sealed aluminium housing - RoHS compliant - Evaluation kit and integration resources available DMU30 is the first of a new family of High Performance MEMS IMUs (HPIMU) incorporating precision VSG3QMAX high-Q inductive resonating ring gyroscopes and capacitive accelerometers. The DMU30 is a six-degree-of-freedom inertial measurement unit providing precise 3-axis outputs of angular rate and acceleration, delta angle and velocity, and temperature at 200Hz. This inertial measurement unit represents a realistic, alternative to established FOG/RLG based IMUs due to its exceptional bias stability and low noise characteristics, yet it is comparatively compact, lightweight and offers low cost of ownership. Designed specifically to meet the growing demand from high-end commercial and industrial market applications for a ‘tactical’ grade non-ITAR IMU, DMU30 utilises Altheris class leading MEMS inertial sensors integrated and calibrated using an in-house state-of-the-art test facility.
