Gyroscope system CRS03

gyroscope system
gyroscope system
Add to favorites
Compare this product


Characteristics

Temperature range

Min.: -20 °C
(-4 °F)

Max.: 60 °C
(140 °F)

Description

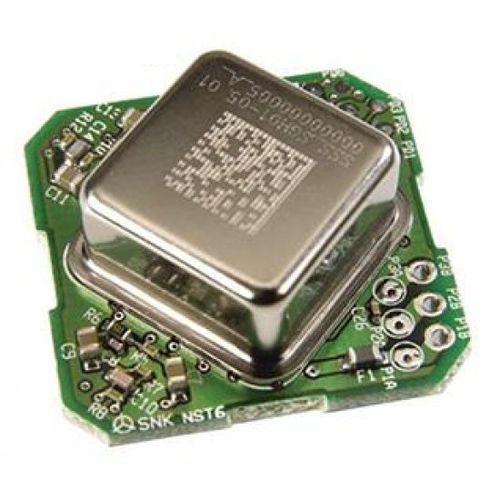

Embedded gyroscoop sensor CRS03 (unpackaged) - Angular Rate Range: ±573°/s - Output: Analogue voltage (ratiometric) - Nominal: 3.49mV/°/s - Non-linearity: < ±0.5% FS - Excellent performance over temperature - Repeatable drift characteristic - High shock and vibration operation - Packaged options CRS03 (unpackaged) - Angular rate sensor A robust and affordable mass-produced gyroscope for automotive and commercial customers. Angular rate sensors are used wherever rate of turn sensing is required without a fixed point of reference. The sensor will output a DC voltage proportional to the rate of turn and input voltage. High performance motion sensing even under severe shock and vibration. Whatever your application, the unique silicon ring technology, coupled with closed loop electronics, gives advanced and stable performance over time and temperature, overcoming the mount sensitivity problems experienced with simple beam or tuning fork based sensors.
