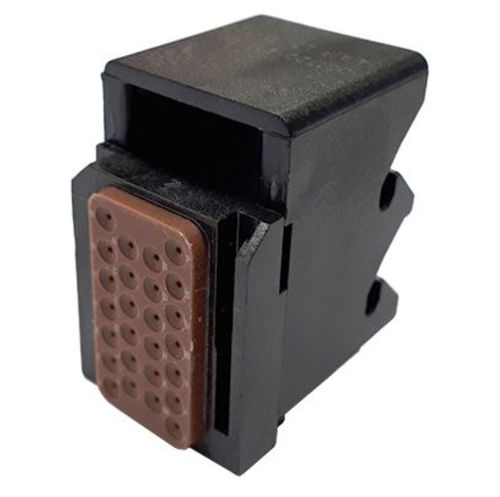

Electrical power supply connector 00172021000
for inflight entertainmentrectangularrapid

electrical power supply connector
electrical power supply connector
electrical power supply connector
Add to favorites
Compare this product


electrical power supply
for inflight entertainment
Connection type
rapid, push-pull
Other characteristics
lightweight, immersion, thermoplastic molded

1,500 V

Primary current

7.5 A


Reach status: Compliant RoHS status: Compliant Obsolescence status: Active Standard: ABS0364 Description The 1720 connectors Series is a push-pull connector for In-Flight Entertainment Systems, Cabin Service Systems, and other interconnect system requirements. Especially suited for applications where shielding is not necessary. Push-Pull connectors for power supply; power supply for legacy Lighting Systems. Key Features Commercial Aerospace specification Lightweight and robust thermoplastic 3-pin quick install version is readily available Fire/Smoke/Toxicity conform to ABD0031 and FAR 25853 Mechanical Insert material - Silicon Contact retention - 9 daN Endurance (nbr of cycles) - 100 Vibrations - Type - Sinusoide Vibrations - Frequency - From 10 to 3000 Vibrations - Amplitude - 20 g Vibrations - Duration - 12 h Shocks - Type - Demi sinusoide Shocks - Amplitude - 50 g Shocks - Duration - 11 ms Static load - 40 daN Environment Operating temperature - Min - -55 °C Operating temperature - Max - 175 °C Salt Spray - 48 h Fluid resistance - Withstanding under sprinkling - Fuel, Hydraulic fluids, Cleaning products, De-icing fluids, Cooling fluids Sealing Immersion at low air pressure - 147 hPa Electrical Insulation resistance (> to) - 5000 MΩ Fire Smoke compliance - ABD 0031, EN 2591-317 Weight Weight - 0 g
