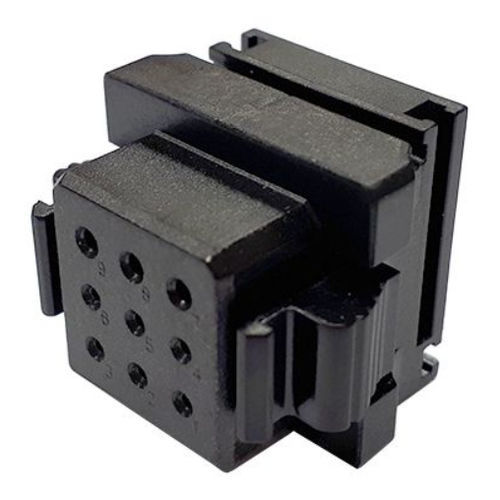

PCB connector 3357 series

datafor inflight entertainmentrectangular

Reach status: Compliant RoHS status: Compliant Obsolescence status: Active Standard: ABS1019 Standard Part Number: ABS1019-003ASC Description The 3357 connectors Series is a compact push-pull connector for In-Flight Entertainment Systems, Cabin Service Systems, Passenger Service Units and other interconnect system requirements. Especially suited for applications where shielding is not necessary. Key Features Commercial Aerospace specification Lightweight and robust thermoplastic 3-pin quick install or PCB versions are readily available Fire/Smoke/Toxicity conform to ABD0031 and FAR 25853 Mechanical Insert material - Silicon Contact retention - 6 daN Endurance (nbr of cycles) - 100 Vibrations - Type - Sinusoide Vibrations - Frequency - From 10 to 3000 Vibrations - Amplitude - 20 g Vibrations - Duration - 12 h Shocks - Type - Demi sinusoide Shocks - Amplitude - 50 g Shocks - Duration - 11 ms Static load - 40 daN Environment Operating temperature - Min - -55 °C Operating temperature - Max - 175 °C Salt Spray - 48 h Fluid resistance - Withstanding under sprinkling - Fuel, Hydraulic fluids, Cleaning products, De-icing fluids, Cooling fluids Sealing Immersion at low air pressure - 147 hPa Electrical Insulation resistance (> to) - 5000 MΩ Fire Smoke compliance - ABD 0031, EN 2591-317 Weight Weight - 7.57 g
