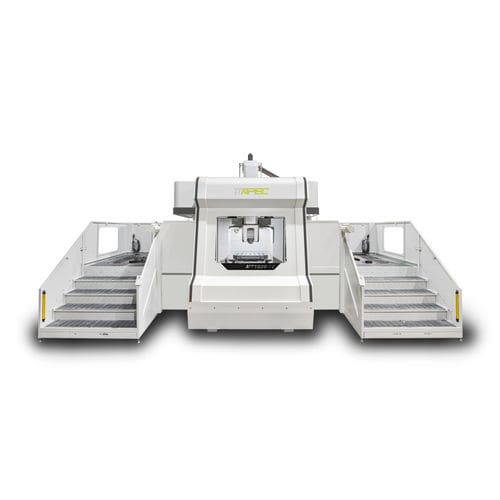

5-axis machining center MT20-RT

with swiveling spindleverticalfor the aerospace industry

-Special machine for aerospace engine casing processing -Duo block structure design -XYZ axis driven by high-speed ball screw -Axis rapid traverse could be 20m/min -The integrated structure of the beam and the column forms an arch structure, which enhances the overall rigidity of the machine and the stability during processing. XYZ axes are drove by precious ball screw which is low-noise, space-efficient and light design, high acceleration and deceleration, high-accuracy, high repeatability. The Rapid federate of 3 axes is up to 20m/min, and the acceleration is up to 0.3G ~ 0.6G. One piece casting made column bridge: enforce the machine rigidity and stability while machining. Base: Inverted dual V-shaped rib structure applied in basement design to achieve best force flow path. The whole travel of X-axis is supported, and this is to avoid gravitational dropping and deformed into guarantee workpiece and surface machining accuracy. Duo block structure with best aspect ratio. Distance from spindle end to table - mm - -300 ~ 550 (Vertical) 60 ~ 910(Horizontal) Table Length× Width - mm - 1,250 x 1,250 Maximum turning - mm - Ø1,900 C-axis angle - deg - ± 360(continuously) C-axis speed - rpm - 5 C-axis torque(S1/max) - Nm - 8,500 / 29,000 Rapid traverse - m /min - X/Y=20 Spindle taper - deg - HSK100A Spindle power(S1/S6) - kW - 50 / 62.5 Spindle torque(S1/S6) - Nm - 318 / 398 Tool shank - pcs - 40T Max. tool length - mm - 400 Max. tool diameter with adjacent tool - mm - Ø125 Max. tool diameter without an adjacent tool - mm - Ø250
