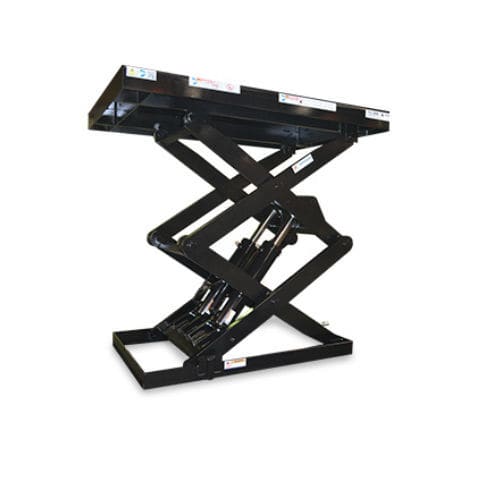

Two sets of vertically stacked scissors are pinned directly together, stabilized, and raised simultaneously by common hydraulic cylinders to create the Double Pantograph Scissor Lift. This design creates a stable structure for high travel applications and consumes less floor space, so it can easily fit among other work equipment. With many model options available, the Double Pantograph Scissor Lift offers travel ranges from 48″ to 240″ and capacities from 3,000 to 12,000 lbs.
Durability and Quality
All scissor rollers are captured within structural steel channels to provide excellent load stability.
High impact, spiral wound bearings at every pivot point provide maintenance-free, rugged resistance to abrasion, impact, and uneven loads.
Structural cross-members at every pinned joint in the scissor assembly minimizes leg deflection due to twisting or spreading under high/uneven loading.
All hydraulic cylinders contain two-piece, self-aligning piston rods that transmit minimal side forces to the cylinder hinges/pins, significantly reducing wear.
Structural steel channels in all top and lower frames provide additional rigidity and resistance to twisting/bending of the lift under load.
Solid steel legs and added stiffeners provide overall stability and straight, repeatable roller tracking as the lift raises and lowers.
Joints, the most critical wear points in the lift, feature chrome-plated, 100,000 psi, ultimate-strength pins for premium load strength and long life.
Minimum 1/4-inch-thick steel-reinforced platform minimizes deck deflection, maximizes load stability, and greatly extends the life of the platform deck.
