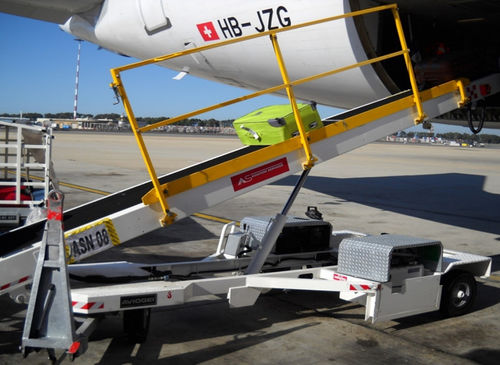

The AVIOGEI model NT 280 Conveyor Belt Loader is an towable equipment specially designe to load/unload baggage and goods into/from the holds of some aircraft having the servicing sill door ranging between 800 mm to 2800 mm.
Designed for reliability and low maintenance cost, the NT 280 is provided with an hydraulic motor coupled on one of the rear wheel in order to facilitate the aircraft approach.
Operative Range
800 a 2800 mm
Chassis
Mounted on towable AVIOGEI steel chassis with parking brake actives with towbar up
Dimension
Lenght ( boom closed ) - 5500 mm
Width - 1800 mm
Transmission
Closed Hydrostatic
Steering
Front fifth wheel
Electrical System
12 VDC
Hydraulic System
Boom Cylinder (single effect )
Braking System
Parking brake actives with towbar up
belt speed
Min 0,2 m/sec
Max 0,5 m/sec
Propulsion
Twin-cylinder diesel Engine
Main Options
– Fire Extinguisher
‘- Front pantograph for boom
– Spare wheel
– Wheel chock pair
– Winter kit
– Other type of engine
