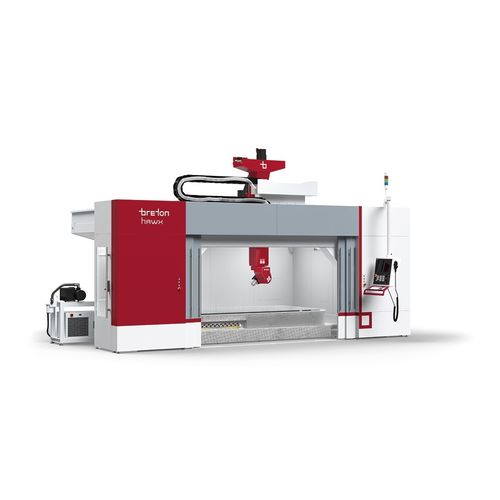

5-axis machining center Hawx E1 series
verticalCNCgantry

5-axis machining center
5-axis machining center
5-axis machining center
5-axis machining center
5-axis machining center
5-axis machining center
5-axis machining center
5-axis machining center
5-axis machining center
5-axis machining center
Add to favorites
Compare this product


Characteristics

Number of axes
5-axis
Spindle orientation
vertical
Other characteristics
CNC, for the aerospace industry, gantry
X travel

4,000 mm, 6,000 mm (157 in)

Y travel

1,900 mm (75 in)

Z travel

1,300 mm (51 in)

Rotational speed

18,000 rpm, 24,000 rpm (113,097 rad.min-1)

Description

The right combination of robustness and stability makes the machine ideal for milling and trimming operations at high speed on parts with complex 3D shapes made of lightweight alloy, resin, or composite materials. Robustness and stability over time The monolithic load-bearing structure and bridge-carriage-RAM unit with box-in-box architecture were designed to raise the level of accuracy and repeatability through time while maintaining high levels of accélération and speed. The end resuit is the création of a new and clearly superior benchmark for machining centres in this category. The Hornet head developed by Breton for this machining centre is extremely stiff to ensure greater accuracy on the part most sensitive to stress, even for the most demanding machining work. Unbeatable footprint ratio Up to 29% more work area for the same external dimensions. Thanks to its ultracompact design, Hawx provides higher machinable volumes in the same space compared to its main competitors. With external dimensions of just 6,300 mm x 3,150 mm, the machine can provide a 4,200 mm x 2,100 mm work area with vertical oriented spindle, and 3,780 x 1,680 with spindle at 90°. This was enabled by optimising the box-in-box structure and thanks to the offset of the new Hornet head. Perfect for both wet and dry machining opérations Failing to provide correct management of dust, chips and liquids generated by various work processes means exposing the operator to risk, creating a hazardous workplace, increasing downtime and impairing machine performance. Hawx is designed to operate both wet and dry without any problems of this type.
