4-axis machining center STAXX COMPACT
horizontalfor aeronautics

4-axis machining center
4-axis machining center
4-axis machining center
4-axis machining center
Add to favorites
Compare this product


Number of axes
Spindle orientation
for aeronautics
X travel

6,500 mm
(255.91 in)

Y travel

3,000 mm
(118.11 in)

Z travel

500 mm
(19.69 in)

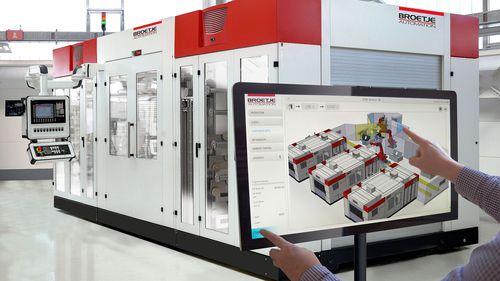

The STAXX COMPACT is robust standalone 16-lane fiber placement machine designed for high volume industrial production. The system is ideally suited for the mass production of small composite parts. It achieves high workpiece quality while minimizing material waste. It comes with Broetje-Automation´s HMI (Human Machine Interface) SCORE coupled with an automated workpiece loading and unloading system as well as intelligent quality control results in reduced workload, thus decreasing labour cost and cycle times. The machine allows for integration into a flowline concept connecting multiple stations in order to automate and accelerate the manufacturing process even further. TECHNICAL DATA Material flexibility: 16 tow Towpreg, Prepreg and Dryfibre 1/4‘‘ (6,25mm) or 1/2‘‘ (12,7 mm) Feed rate 60m/min Cut on the fly 45m/min Max. part length: 66,92‘‘ (1700mm) Pallet size: 1525mm x 900mm Electrical Installation: 30kW Pneumatic Installation: 6bar Air conditioned enclosure including creel and material storage Double-sided parallel loading / unloading with zero point clamping systems Pallet handling system Siemens 840D-SL Controls SPECIAL FEATURES Direct layup of 2D unidirectional carbon fiber net shape Totally enclosed and air conditioned system for maximum flexibility No limitations in fiber orientation Automated component loading and unloading Closed air conditioned cell resulting in high safety and high scalability Easy material reloading Operator friendly Human machine interface Compact dimensions, easy relocation
