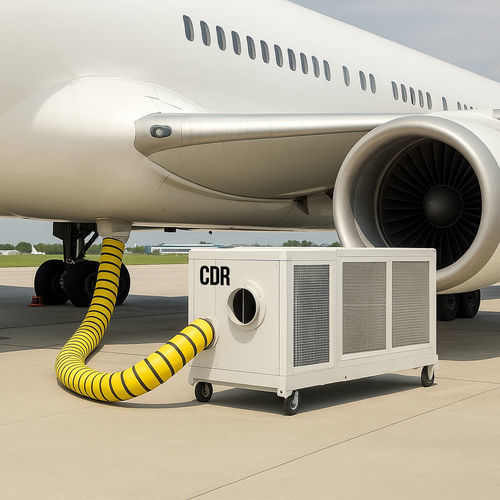

Air conditioning unit C/H

C/H Sériés ACU Units are designed for air conditioning of the passenger cabin during of aircrafts parking. Our new technology ACU unit's supplying the cooling, ventilation and heating through réversible heat-pump to the aircrafts.

Executions
• Passenger Boarding Bridge
• Mobile
• Solid-state
• Diesel

Adjustments
• Any power rate according to client needs

Fully customizable
• Trolley
• Color
• Cable length
• Technical parameters

ECO Mode

• Saves fuel and emissions
• Low noise level

100% Fresh Air

• Down to -2 ºC/up to +45 ºC

10 min Modularity

• Ease of installation
• Ease of operation
• Ease of maintenance

Aircraft type: narrow-body, wide-body
Airflow: up to 210 kg/min
Static pressure: up to 10,000 Pa
Discharge temperature: down to −2°C
Air mode: 100% fresh air
Heating technology: reversible heat pump
Execution: mobile, fixed, PBB-mounted, diesel
Protection class: IP55
Operating temperature: −55°C to +55°C


NARROW BODIES
Cooling Capacity: 20–125 kW
Maximum Air Flow: 110 kg/min
Available Static Pressure: 6300 Pa
Heat Pump Capacity: 19–82 kW
Discharge Temperature: -2 °C

WIDE BODIES
Cooling Capacity: 28–184 kW
Maximum Air Flow: 150 kg/min
Available Static Pressure: 8500 Pa
Heat Pump Capacity: 26–110 kW
Discharge Temperature: -2 °C

WIDE BODIES & WIDE BODY +
Cooling Capacity: 40–300 kW
Maximum Air Flow: 210 kg/min
Available Static Pressure: 10000 Pa
Heat Pump Capacity: 22–160 kW
Discharge Temperature: -2 °C°C
