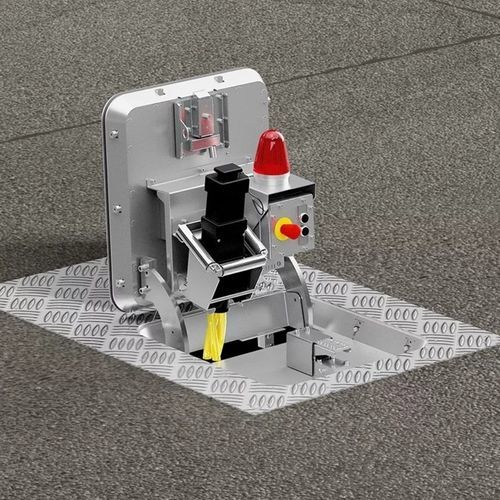

PCA pit system Hatch PIT Series

for runwayhangar

Hatch PIT Series Systems are underground access points for reliable aircraft ground servicing supporting safe access to 400 Hz, 28V DC, PCA, Air & Water connections.
Durable galvanized Steel frame, load bearing up to 90 tons.

• PIT - AC: 400 Hz

• PIT - DC: 28 V

• PIT - AC/DC: combined

• PIT - PCA (ACU): Pre-Conditioned Air

• PIT - A/W: Compressed Air & Potable Water

• Chamber illumination, sump pump, earthing pin

• Emergency stop & control panel for ail units

Multiple Independent Outputs

• AC, DC, AC/DC, PCA, Air & Water
• Independent and simultaneous use

Technical Design

• Galvanized steel frame
• Reinforced plastic cable boxes
• Floor grating and junction boxes

Safety & Reliability

• Emergency stop
• LED signal lamp
• Load bearing up to 90 tons (EN124 F900 compliant)

GENERAL
Climatic execution –55 °C to +55 °C
Humidity up to 100 %
Electric boxes protection class IP67
Hatch protection class IP55
Corrosion resistant coating: hot galvanized
Anti-slip cover aluminium plate
Grounding accordance with EN 60445:2001
Flashing light indicates
Junction box 50/60 Hz,400 Hz,28 VDC
Load class in accordance with EN124 F900
Country of origin Estonia, EU

Multiple Independent Outputs

• AC, DC, AC/DC, PCA, Air & Water
• Independent and simultaneous use

Technical Design

• Galvanized steel frame
• Reinforced plastic cable boxes
• Floor grating and junction boxes

Safety & Reliability

• Emergency stop
• LED signal lamp
• Load bearing up to 90 tons (EN124 F900 compliant)
