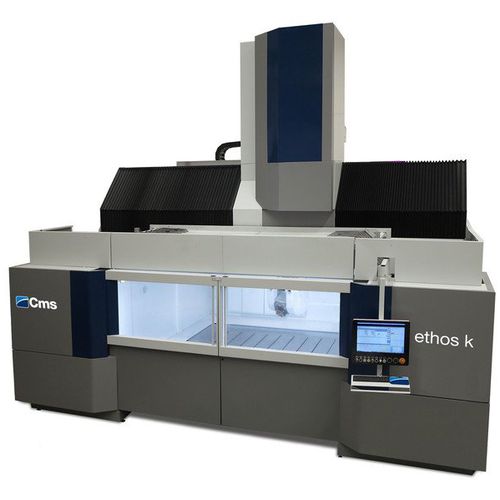

5-axis machining center ETHOS K
horizontalCNCfor aeronautics

5-axis machining center
5-axis machining center
5-axis machining center
5-axis machining center
5-axis machining center
5-axis machining center
5-axis machining center
5-axis machining center
5-axis machining center
Add to favorites
Compare this product


Characteristics

Number of axes
5-axis
Spindle orientation
horizontal
Other characteristics
CNC, for aeronautics
Rotational speed

15,000 rpm, 24,000 rpm
(94,248 rad.min-1, 150,796 rad.min-1)

X travel

Min.: 2,500 mm
(98 in)

Max.: 20,500 mm
(807 in)

Y travel

1,300 mm, 2,000 mm, 2,600 mm, 4,000 mm
(51 in, 79 in, 102 in, 157 in)

Z travel

1,300 mm, 2,000 mm
(51 in, 79 in)

Description

This is the most compact machining center of the Ethos serie. The monobloc system provides the stability, accuracy and high machining quality even under the presence of heavy stresses. The compact dimensions allow easy fitting to every productive environment, whilst providing a large work envelope. mechanical moving parts designed to optimize the power/weight ratio, driven by high-performance motors with high speed and acceleration characteristics high operating power, geometric accuracy and machining reliability maximum accessibility to the working area for an easier loading/unloading, even for heavy parts PRECISION LIKE NEVER BEFORE Thanks to Aero-Design technology, the frames of the machining centre boast structural rigidity up to 23% higher than the average in its category, with a high capacity of vibration absorption. In addition, recirculating roller guides and zero backlash kinematics allow the achievement of unprecedented accuracies on such types of machining centres. The combination with state of the art acceleration and speed ensures, as a result, the perfect balance between precision and speed for the most demanding productions such as automotive and aerospace POWER AND CONTROL ethos k can be fitted with an innovative 5-axis operating unit equipped with torque motors on the rotating axes; this technology allows direct coupling between the motors and the axes, eliminating all the transmission components and therefore all inaccuracies and mechanical wear; the torque motors can also reach accelerations and speeds up to 5 times higher than traditional solutions while ensuring 41% higher precision.
