Characteristics

Number of axes
5-axis
Spindle orientation
horizontal, vertical
Other characteristics
for aeronautics, CNC, gantry
Rotational speed

Min.: 500 rpm
(3,142 rad.min-1)

Max.: 30,000 rpm
(188,496 rad.min-1)

X travel

3,200 mm
(126 in)

Y travel

2,000 mm
(79 in)

Z travel

1,000 mm
(39 in)

Description

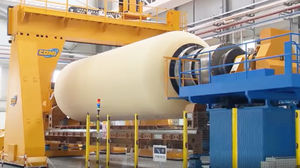

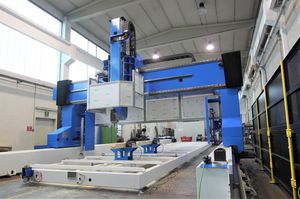

Monnalisa is the innovative horizontal 5 axis milling centre specifically developed for machining monolithic, structural, large dimension aluminum parts, particularly suitable for aerospace industry applications The axis strokes and the attention to their movement The X carriage consists of a rigid double column in cast iron and it is moved by 4 gearboxes with integrated pinion and 4 brushless motors. The Gantry configuration presents two Twin Drive systems for the recovery of any backlash through an electronic preload. The Y axis is mounted on roller sliding blocks which slide on guides housed on the axis X fusion; the Z axis is made by a parallelepiped rectified structure which slides on roller sliding blocks, whose guides are housed instead on the Y axis fusion. The cross system vertical axis/RAM, respectively Y axis and Z axis, is made by two integrated structures Box in Box. The carriage position is detected by optical encoded and pressurized lines, made by Heidenhain. Extremely robust structure, in cast iron The machine structure is built in cast iron and reinforced in strategic points, giving therefore also great rigidity and dynamics, with the minimal temperature drift. The machine is equipped with PT100 temperature detection, used for any eventual upgrading. Large capacity automatic tool changer Rack with 120 tools positioned on the side and properly protected by working chips as well as dust when not used. Double working table, pallet change type The working tables are made by two large dimension working plates (3200 x 2000 mm), symmetrical (pallet change) to allow replacing of the pieces during the machining cycle.
