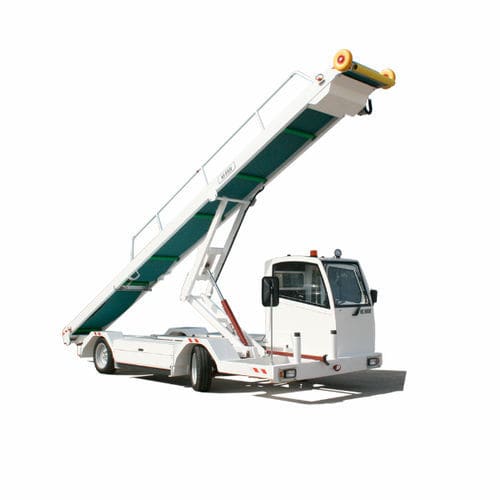

Self-propelled belt loader NS E series

for airport

The NS E various models are characterized by different length of the conveyor boom, by a modular carpet with acetyl elastomer grip, by the presence of an PLC control which manages all the machine functions and the security as well. The special carpet with elastomer surface guarantees a very high draining capacity,meanwhile requires no tension and allows fast replacement of even small parts. These particular characteri-stics offer multiple benefits in a very short time and maintenance costs as well. The water resistance elasto-mer grip surface ensures luggage handling even with high tilt angles without slipping. These models are po-wered electrically. FEATURES • - Boom structure made in welded tubular profile. • - Scissor lifting by front and rear (optional) • - Conveyor belt speed: fixed 24 mt/min or 15 to 30 mt/min (optional) • - Capacity 135 kg/mt. • - Single load 400 Kg based on 600x800mm • - Handrail on the left side h= 1000mm (optional) • - Foldable handrail on right side h= 1000mm (optional) • - Aluminum left side rail h=100mm (optional) • - Aluminum foldable right side rail h=100 (optional) • - Canopy over the conveyor in lexan (optional) ELECTRIC SYSTEM • - Battery consists on 40 elements 81 x 197 h 370 = 80V amounted to 240 Ah, autonomy of 6:00 in conti- nuous opération and placed in a box for better handling of extraction. • - Electric traction motor 5000W 80V 1500 rpm ventilated. • - Electric motor to drive the belt with gear unit 500W 80V - ventilated service time: 50 minutes to 60. • - Electro-motor pump to drive power steering and scissors lifting 3000W 80V - 2000 rpm ventilated. • - DC/DC converter for lightmg and solenoid valves 12V/42Ah V
