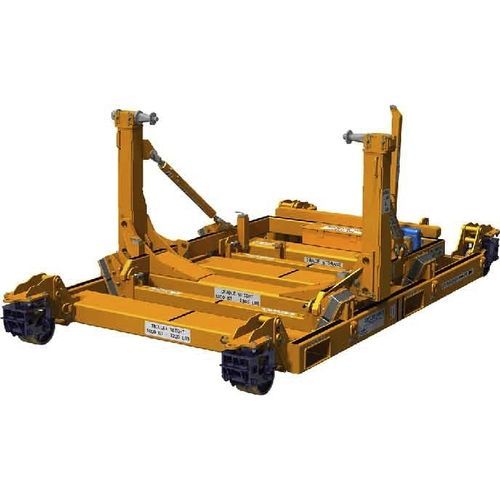

Engine transporter CFM56-5A/5B

for airport

STANDARD AIRCRAFT TRANSPORTATION STANDARD TRUCK TRANSPORTATION ON-WING ENGINE INSTALLATION STACKABLE STOCK AVAILABILITY ON COMPONENTS REPAIR / RECERTIFICATION UPGRADES AND MODIFICATIONS WEIGHT 2415 kg [5,290 lbs] DIMENSIONS 4420 mm X 2413 mm X 1549 mm [174 in X 95 in X 61 in] USAGE Transport, install and remove CFM56-5A/5B engine INTERFACES WITH Fan frame / Turbine rear frame BOOTSTRAP POINTS On engine stand cradle COUNTERWEIGHT Yes – To balance weight during bootstrap operation LIFTING SYSTEM No | Vertical positions: 1 CASTER WHEEL TYPE Swiveling caster; double wheel with 2 wheel pins CASTER WHEEL POSITIONS 4 (Ground position / Engine position / Middle course to change lift bar orientation / Empty stand caster position) ISOLATION 8 shock absorbing mounts between cradle and trolley – To protect engine from shock, vibration and acceleration during transportation STACKABLE Yes (Quantity: 3) TOWING CAPABILITY Forward & AFT
