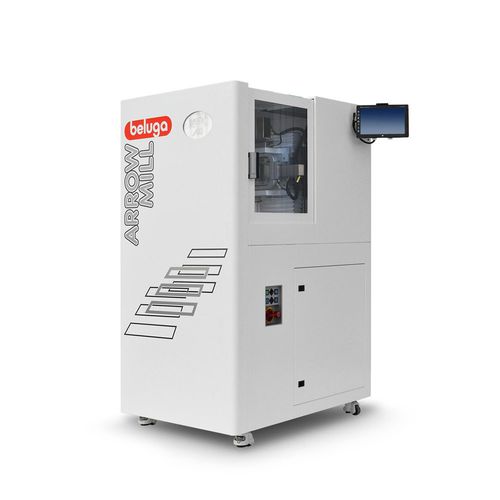

CNC milling machine Arrow Mill Beluga

verticalfor aeronautics5-axis or more

The Arrow Mill Beluga machine raises competitiveness and reliability of your laboratory since it provides high productivity, high-quality surface treatment and a high level of flexibility due to the large tool changer. Materials can be treated with the highest precision. It is built on cast iron construction that ensures minimal vibration. It is suitable for large and medium-sized laboratories. Technical data: – exceptional dynamics provided with five servo motors; maximum speed up to 10 m/min – minimum resolution 0,001 mm – spindle: high-frequency spindle (Jaeger 6000 to 60.000 rpm); Pmax/5s 2,5 kW – spindle cooling system with pump 21 l/min – mounting system WK 6°-1/ER 11 for tools with a diameter up to 6 mm – automatic tool change (capacity up to 18 tools) – automatic tool length calibration and broken tool detection – wet and dry treatment – instant dust extraction during machining of zirconia (optional; with Arrow cleaner) – compressed air minimum 6 bar at 120 l/min – power supply: 230 V, 50/60 Hz – the machine is equipped with wheels for easy transportation and positioning Dimensions: Width: 760 mm Height: 1600 mm Length: 1080 mm Weight: 450 kg
