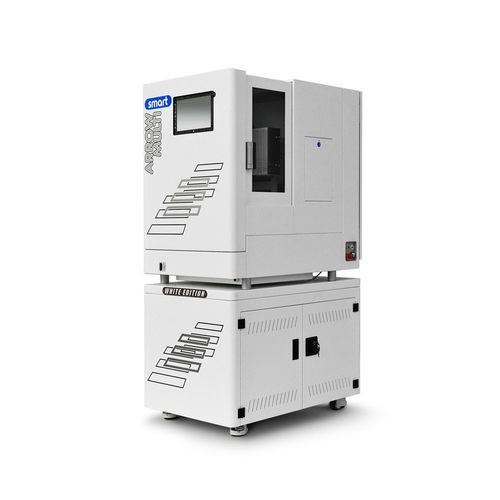

CNC milling machine Arrow Mill Smart

verticalfor aeronautics5-axis or more

The Arrow Mill Smart machine offers additional value for your laboratory with high accuracy and productivity. It allows great flexibility due to the large 15-unit tool changer. It is built on cast iron construction that ensures minimal vibration. Smart is suitable for large, medium and small-sized laboratories. It can be placed on top of the furniture, so it saves space. Technical data: – very good dynamics provided with five servo motors; maximum axis travel speed up to 10 m/min – minimum resolution of 0,001 mm – spindle: high-frequency spindle (Jaeger 6000 to 60.000 rpm); Pmax/5s: 2,5 kW – spindle cooling system with pump 21 l/min – direct tool clamping system for tools with a diameter of 4 or 6 mm – automatic tool change (capacity up to 15 tools) – automatic tool length calibration and broken tool detection – wet and dry treatment – instant dust extraction during machining of zirconia (optional; with Arrow cleaner) – compressed air minimum 6 bar at 120 l/min – power supply: 230 V, 50/60 Hz Dimensions: Width: 600 mm Height: 930 mm Length: 910 mm Weight: 220 kg Pedestal dimensions: Width: 600 mm Height: 650 mm Length: 910 mm Weight: 55 kg The pedestal is equipped with wheels for easy transportation and positioning.
