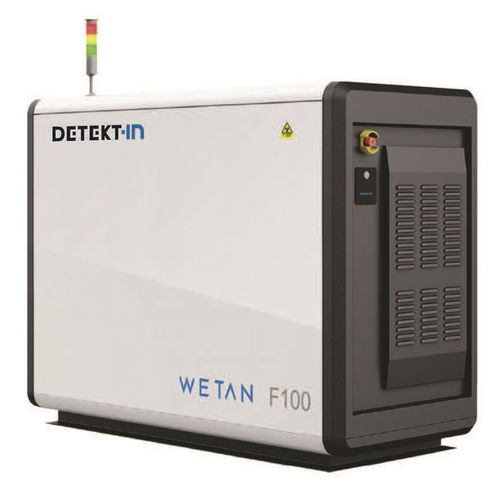

Vehicle scanner F100

inspectionX-ray

F100 Fixed Inspection System – Backscatter Technology – Vehicle Checkpoint Inspection – Real-Time Imaging – Contraband Detection


Fixed rapid inspection system for compact vehicles at checkpoints. Designed for real-time imaging at passage lanes, the F100 uses contactless backscatter technology to accurately detect concealed contraband including drugs, explosives, and weapons.


Backscatter Technology and Ultra-Low Dose Transmission
Backscatter X-ray imaging sensitive to low atomic number materials (drugs, explosives, liquids).
Ultra-low dose transmission imaging enhances detection capability for weapons, knives, and hidden contraband without additional radiation.
Optional transmission detectors generating backscatter and transmission images simultaneously.


Flexible Multi-Mode Deployment
Multiple operating modes including single or dual-side backscatter and transmission imaging, customizable according to situations.
Single backscatter unit deployed on one side of the lane.
Optional RM (Radioactive Material) monitor surveilling radioactive materials in inspected vehicles.


Three Scan Modes
Mode 1 Drive-through: vehicle passes at speed ≤5 km/h (max 10 km/h).
Mode 2 Vehicle dragged: vehicle towed at ≤0.5 m/s.
Mode 3 Equipment dragged: equipment towed at ≤0.5 m/s.
Scan height 2 m. Dose per scan 0.1 µSv (typical).


Technical Specifications

• X-ray source: X-ray tube
• Steel penetration: 8 mm
• Drive-through speed: ≤5 km/h (max 10 km/h)
• Towed modes speed: ≤0.5 m/s
• Scanned height: 2 m
• Dimensions: 1600 mm (H) × 2050 mm (L) × 950 mm (D)
• Weight: 1000 kg

Fixed solution for rapid vehicle inspection at anti-drug checkpoints, borders, highways, and secure site entrances requiring real-time detection without slowing traffic flow.
