AHRS inertial system SV-ADAHRS series

MEMSfor avionics instruments

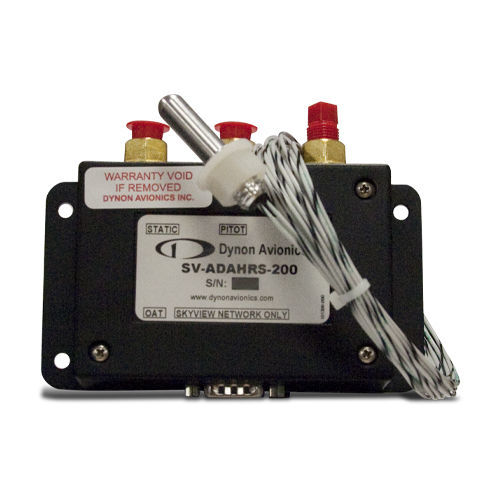

The SkyView Primary ADAHRS Module uses MEMS sensor technology to generate inertial, magnetic, and Pitot/Static pressure data. This data is used by SkyView to calculate and display the following functions: Artificial Horizon/Synthetic Vision display, Gyro-Stabilized Heading indicator, Indicated and True Airspeed indicators, Altitude, and Vertical Speed indicators, Slip/Skid, Turn Rate, Angle of Attack indicators, Flight Path Marker, Winds Aloft speed and direction indicators. Additional Information SkyView ADAHRS Modules: ADAHRS stands for Air Data/Attitude/Heading Reference System. Dynon sells a primary ADAHRS model (SV-ADAHRS-200) and a backup model (SV-ADAHRS-201). The primary and backup models are identical in functionality, however you must have at least one SV-ADAHRS-200 in the system in order for the SV-ADAHRS-201 to function. An Outside Air Temperature Sensor is included with each SkyView ADAHRS Module. Specifications SkyView ADAHRS Module Connections: Pneumatic ports for Pitot, Static, and Angle of Attack 9-Pin DSUB Connector for the SkyView Network 2-Pin Connector for SV-OAT-340 Sensor The SkyView ADAHRS Module's internal sensors measure rotational motion and acceleration about the airplane's Lateral, Longitudinal, and Roll axis. The ADAHRS should be mounted on a rigid surface within six feet laterally and twelve feet longitudinally of the aircraft C/G. The SkyView Universal Module Mounting Tray Kit for SV-HDX1100 provides the installer with a quick and easy method for mounting the ADAHRS and other SkyView electronic modules right behind the instrument panel.
