vertical turning center / 5-axis

Add to MyAeroExpo favorites
vertical turning center / 5-axis vertical turning center / 5-axis
{{requestButtons}}

Characteristics

  • Spindle orientation:

    vertical

  • Number of axes:

    5-axis

  • Diameter:

    350 mm

  • Spindle speed:

    Max.: 2,000 rpm (12,566.371 rad.min-1)

    Min.: 1,600 rpm (10,053.096 rad.min-1)

Description

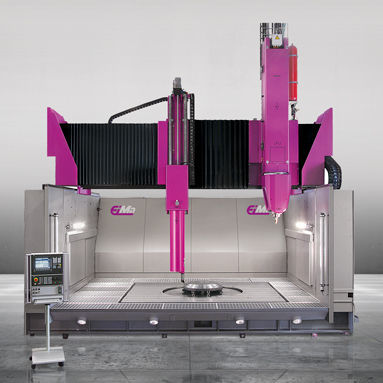

Fitting a continuously turning rotary table to a GAMMA machine creates a very interesting variant.In the example shown here, the table has a diameter of 1,600 mm and a maximum speed of 200 rpm. Depending on the particular application, a Capto tool holder can be installed on the 5-axis milling head or, as in this case, to a separate rotary slide. This allows, for example, a workpiece with an internal hole of Ø 350 mm to be hollowed out 1,300 mm deep.
