Single-seat gyrocopter ELA GYRO-TRACTOR
4-stroke engine

single-seat gyrocopter
single-seat gyrocopter
single-seat gyrocopter
single-seat gyrocopter
single-seat gyrocopter
single-seat gyrocopter
single-seat gyrocopter
Add to favorites
Compare this product


Characteristics

Passenger capacity
single-seat
Motorization
4-stroke engine

Description

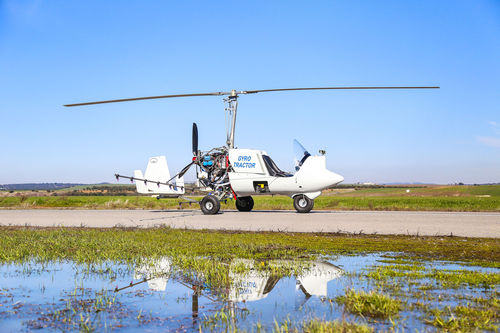

The Gyro-Tractor is a professional crop-spraying gyrocopter. It is equipped with the powerful Rotax 915 iS of 140 hp and a 200 L hopper. The spraying booms have 8,25 m (27 ft) of wingspan, give us an efective pass width of 15 m (50 ft). This gyrocopter can spray up to 10 Ha in just 5 minutes, applying up to 30 L/ha. The spraying system is controlled by the AgNav Titanium device, that allows us to perform a professional and efficient task. Engine Rotax 915 iS (140 hp) Max. Take-off Weight (MTOW) 650 kg (1430 Ibs) Spraying Speed 110 Km/h (70 mph) Spraying Power 30 l/ha (8 gal/ha) Take-off Roll 200 m (655 ft) Useful Load 280 kg (615lbs) Hopper Capacity 2001(52 gal) Effective Pass Width 15 m (50 ft) Rate ofClimb 500 ft/min Landing Roll (empty) 20 m (65 ft) INSTRUMENTS & AVIONICS •AgNav Cuia Platinum •Digital airspeed ind. •Digital ALT & VSI ind. •Vertical card compass. •EMS 'Kanardia EMSIS*. •Radio TQ AVIONICS KRT2-S. •Trim pressure ind •USB Power plug in front. STANDARD EQUIPMENT •Stainless Steel airframe. •Carbon fiber fairings and tailplane. •Rotax 915 iS (140 hp). •Aluminum 8.8 m rotor. •200 L Hopper capacity.

VIDEO
