FAA Approved Primary Replacement
Primary Replacement STC’d, TSO’d & PMA’d
Remove your old engine instruments, including RPM, Manifold, EGT/CHT, Fuel Level, Oil Pressure and more!
Upgrade your aircraft panel with the best engine analyzer available.
Easy To Install
CGR-30P fits into your existing 3 1/8″ hole (remove your old tach).
Engine Data Converter (EDC) accepts all inputs. Only 2 wires run to the back of the instrument.
Accurate, Dependable & Easy To Use
Electronics International consistently has been a leader in digital engine instrumentation since 1979.
Data Recording of Every Flight
All monitored functions are stored up to three times per second.
Up to 1,500 most recent flights stored, downloaded via a USB port.

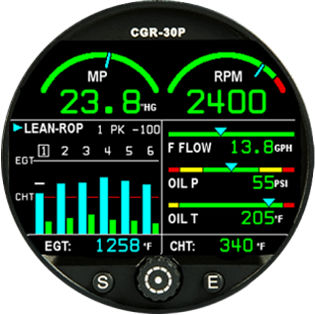

The Main Screen displays the Tachometer and Fuel Flow in large analog arcs at the top of the instrument, providing immediate and quick reference values. The digital display provides accuracy in monitoring engine functions.
The CGR Main Screen also features a complete, primary replacement EGT/CHT Bar Graph Engine Analyzer. Each cylinder is monitored by the CGR. If any EGT or CHT temperature rises above or below programmed limits, the CGR provides an immediate alert. The EGT/CHT Bar Graph Analyzer features both Lean-of-Peak and Rich-of-Peak Modes for easy engine leaning. The CGR-30P will let you know as each cylinder peaks, at what temperature each cylinder peaks, and how far below Peak Temperature each cylinder is operating.
To the right of the EGT/CHT Bar Graph Analyzer, the CGR-30P displays Fuel Remaining, Volts, and OAT.
