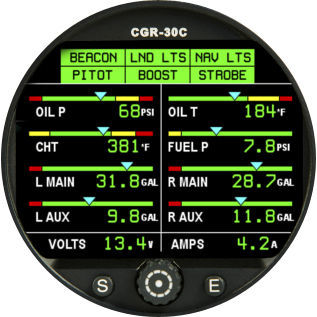

Temperature gauge CGR-30C

pressureleveldigital

FAA Approved Primary Replacement Primary Replacement STC’d, TSO’d & PMA’d The CGR-30C allows for the removal of old engine instruments such as oil temperature/pressure, fuel pressure, and fuel level. Monitors four or more fuel tanks in an easy-to-read, full-color digital format. Easy To Install The CGR-30C mounts flush into an existing 3 1/8″ hole. Engine Data Converter (EDC) accepts all inputs. Only 2 wires run to the back of the instrument. Accurate, Dependable & Easy To Use Electronics International consistently has been a leader in digital engine instrumentation since 1979. Data Recording of Every Flight All monitored functions are stored up to three times per second. Up to 1,500 most recent flights stored, downloaded via a USB port. The Secondary Screen is intended to display functions which do not need to be displayed continuously. This screen can display up to 6 secondary functions or additional primary functions that will not fit on the Main Screen. These primary functions will all annunciate to whichever screen you’re viewing if a limit is violated. The red and/or yellow range annunciators on the Secondary Screen will blink to alert the pilot of any potential problem with a primary function on the Main Screen.
