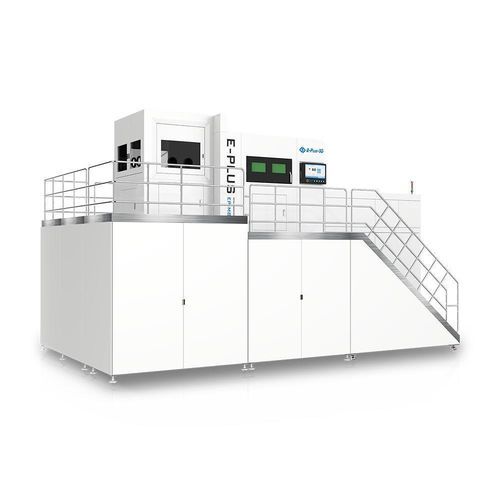

Metal 3D printer EP-M825

powder bed fusionhigh-performancelarge-format

Overview
EP-M825 is an industrial metal powder bed fusion (MPBF) 3D printer designed for large-format, high-throughput production. It features an 825×825×1100 mm build chamber, multi-laser optical configurations and precise positioning to support direct manufacturing of high-performance components for aerospace, moldmaking, automotive and similar industrial applications.

Key Features

• High productivity: 760 L build chamber; configurations with 4/6/8/10 fiber lasers (500 W standard; 700 W/1000 W optional); theoretical print speed up to 350 cm³/h (up to 410 cm³/h reported for ten-laser simultaneous operation) and bi-directional powder spreading to shorten cycles.
• Consistent part quality: overlap accuracy within ±0.1 mm; print density >99.9%; mechanical property fluctuation <5%.
• High precision: spot size 70–120 μm, max scan speed 8 m/s and precise laser positioning control for stable surface quality; optimized airflow to remove spatter and dust.
• Easy operation & maintenance: three-stage filtration with permanent elements; user interface with one-click printing; real-time build job information and traceable parameter reports; one-piece take-out for automated handling.
• Real-time monitoring & safety: closed powder handling with sealing and recovery; environment and gas-source monitoring; oxygen control ≤100 ppm and safety measures to reduce mis-operation and hazards.

What EP-M825 Can Print (selected examples)
Rocket Engine Nozzle Expansion Section

• Machine: EP-M825
• Process: Metal Powder Bed Fusion (MPBF)
• Material: Stainless steel
• Size: Φ1050 x 160 mm
• Printing time: 160 h
• Application: Aerospace

Rocket Compartment

• Machine: EP-M825
• Process: Metal Powder Bed Fusion (MPBF)
• Material: In718
• Size: 630 x 630 x 1100 mm
• Application: Aerospace

Technical Specifications
Machine Model: EP-M825
Build Volume (X x Y x Z): 825 x 825 x 1100 mm (height incl. build plate)
Optical System: Fiber Laser 4 / 6 / 8 / 10 x 500 W (700 W and 1000 W optional)
Spot Size: 70 - 120 μm
Max Scan Speed: 8 m/s
Layer Thickness: 20 - 120 μm
Theoretical Print Speed: Up to 350 cm³/h (up to 410 cm³/h with ten-laser operation)
Materials: Titanium alloys, Aluminum alloys, Nickel alloys, Maraging steel, Stainless steel, Cobalt chrome, etc.
Power Supply: 380 V, 50/60 Hz, 19–33 kW
Gas Supply: Ar / N2
Oxygen Content: ≤ 100 ppm
Dimensions (W x D x H): 8260 x 4680 x 5470 mm
Weight: ~36,000 kg
Software: EPControl, EPHatch
Input Format: STL or convertible file
